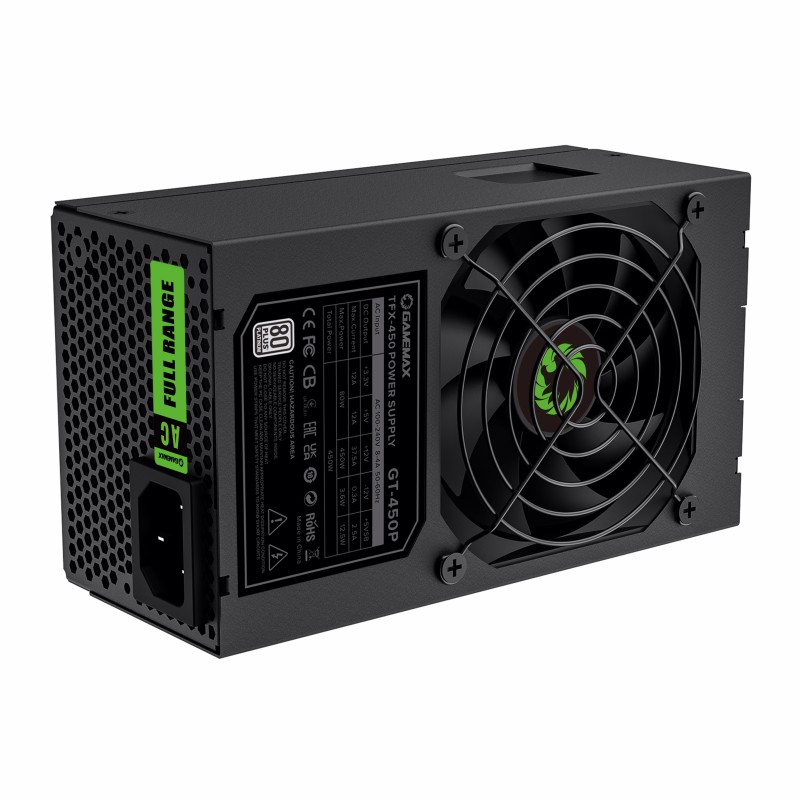

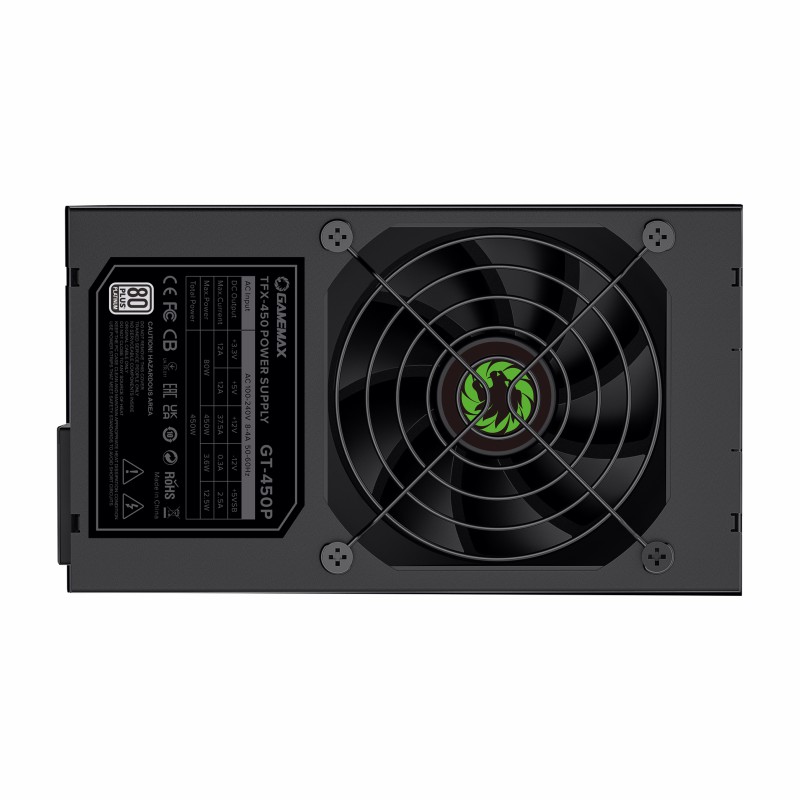

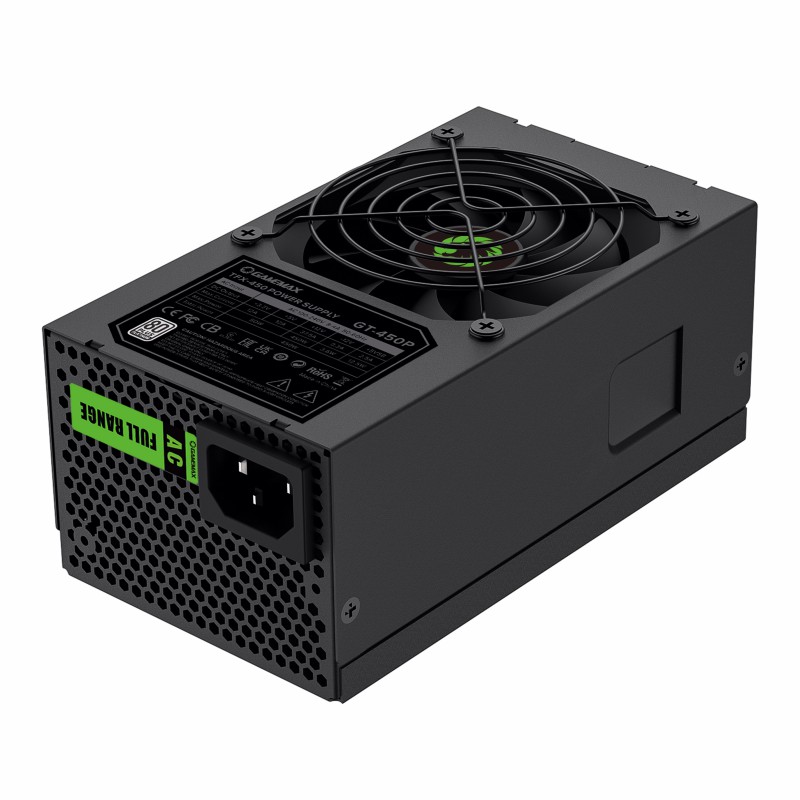

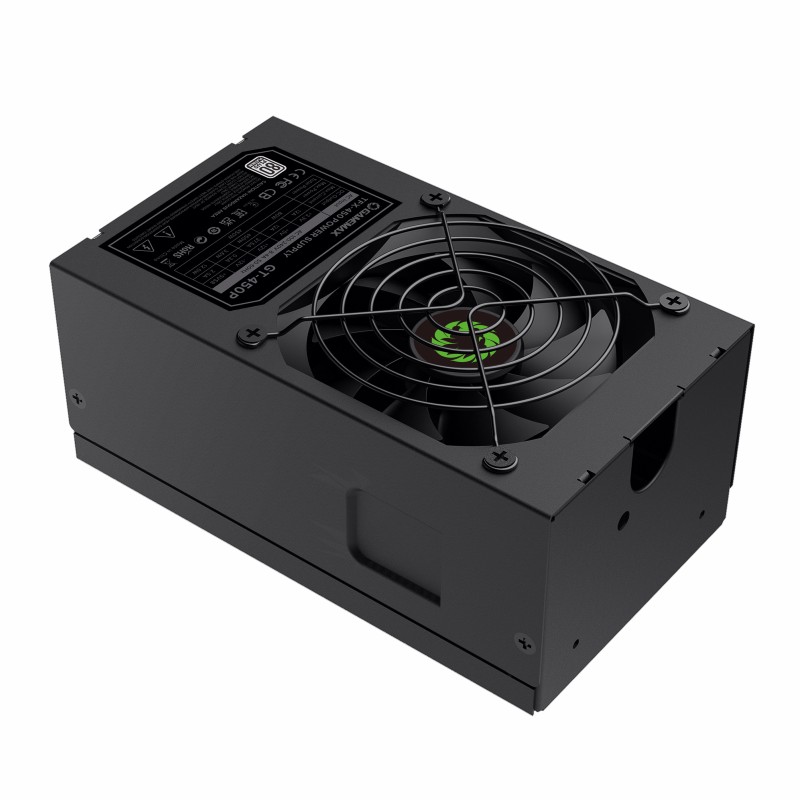

GT-450P 铂金
TFX,450,Platinum,power,supply
TFX PSU 450W continuous power output, Active PFC 80Plus Platinum, at 40℃ rated operating temperature for 24/7 operation ensures unwavering power and reliability
AC Input Voltage from 110-240v. TFX power supply is the most common in brand PC machines
Size: 150*85*65mm, smaller than ATX power supplies. Strictly according to standard TFX form factor. High efficiency, small volume
Low-noise fan 80mm. High efficiency with 90%
Multiple protection including OVP, UVP, OCP, OPP, and SCP
?Safety / EMI Approvals: CE, FCC, CB, UL
Scope of application: TFX power supply is widely used in MINI-ITX computer ITX case, PO, IPC, server, workstation, industrial computers, all-in-one computers, etc. TFX power supply is mainly used in small equipment, TFX cases, and some HTPC cases

TFX 450 Platinum, 80 PLUS standard, this active PFC unit runs at a max of 92% efficiency,
Silent running 80mm fan with 18 dBA minimum,

Single PCI-E 6+2pin connectors support,
Finally, there is full electrical protection and official safety is promised

PSU Specifications

AC INPUT: 100-240 VAC 8~4A 50-60Hz
DC+3.3V+5V+12V-12V+5VSB
Output12A12A37.5A0.3A2.5A
Max450W


Connectors Specifications
