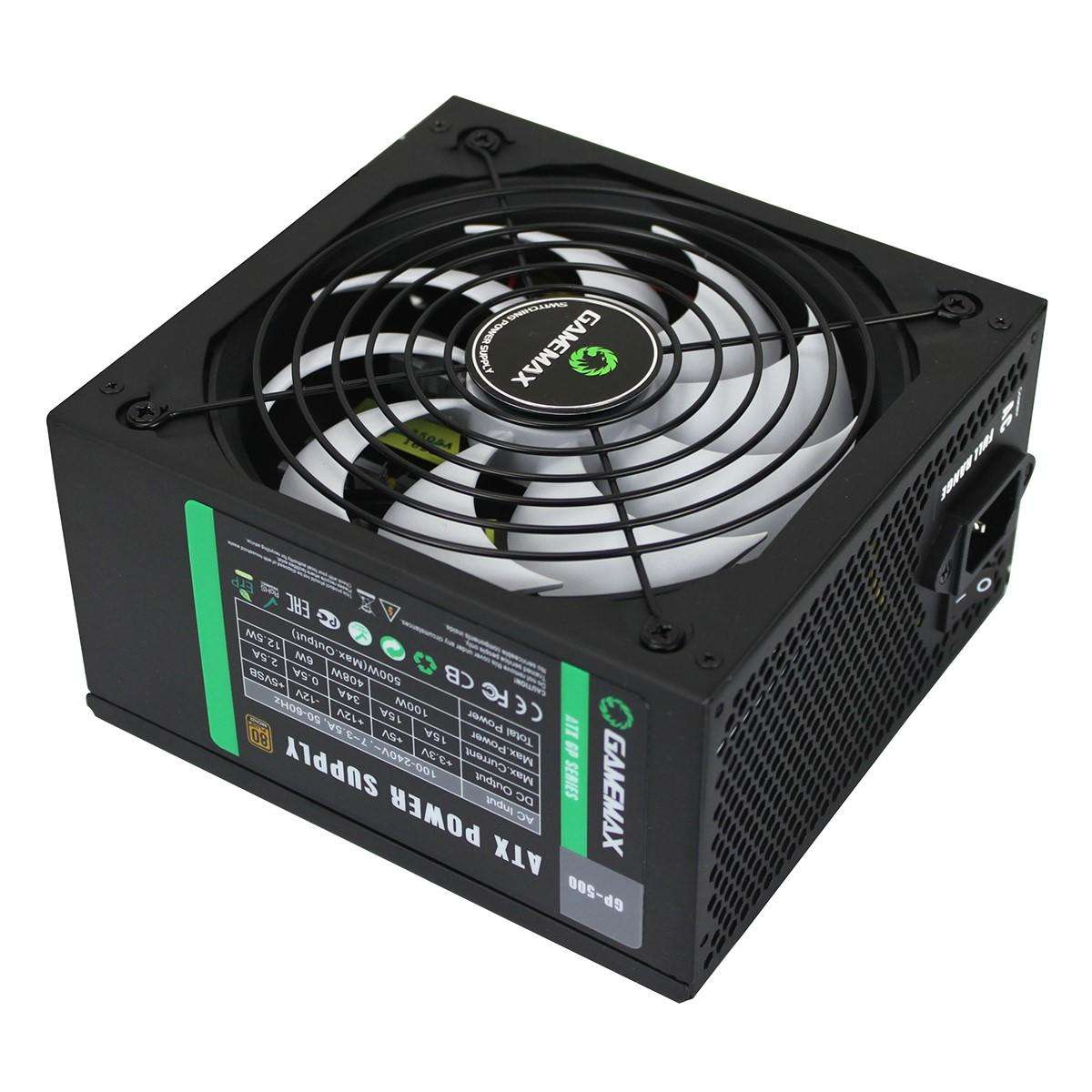

GP-500
GP500,ATX,PSU,500w,APFC,80,Plus,14CM,Fan,4,Sata
GameMax performance range power supplies are a great choice if you are building a home or office system as a mainstream model, there is a total of 4 Sata connectors for Raid storage and up to 85% efficiency for power saving and a single +12V rail for extreme CPU/GPU power consumption. Good DC quality with lower ripple and noise and fully protected functions are used to guard your components in the system. When installing there is no struggle with the longer 20 + 4 pin and 4 + 4 pin connectors measuring 550mm.

Key Features

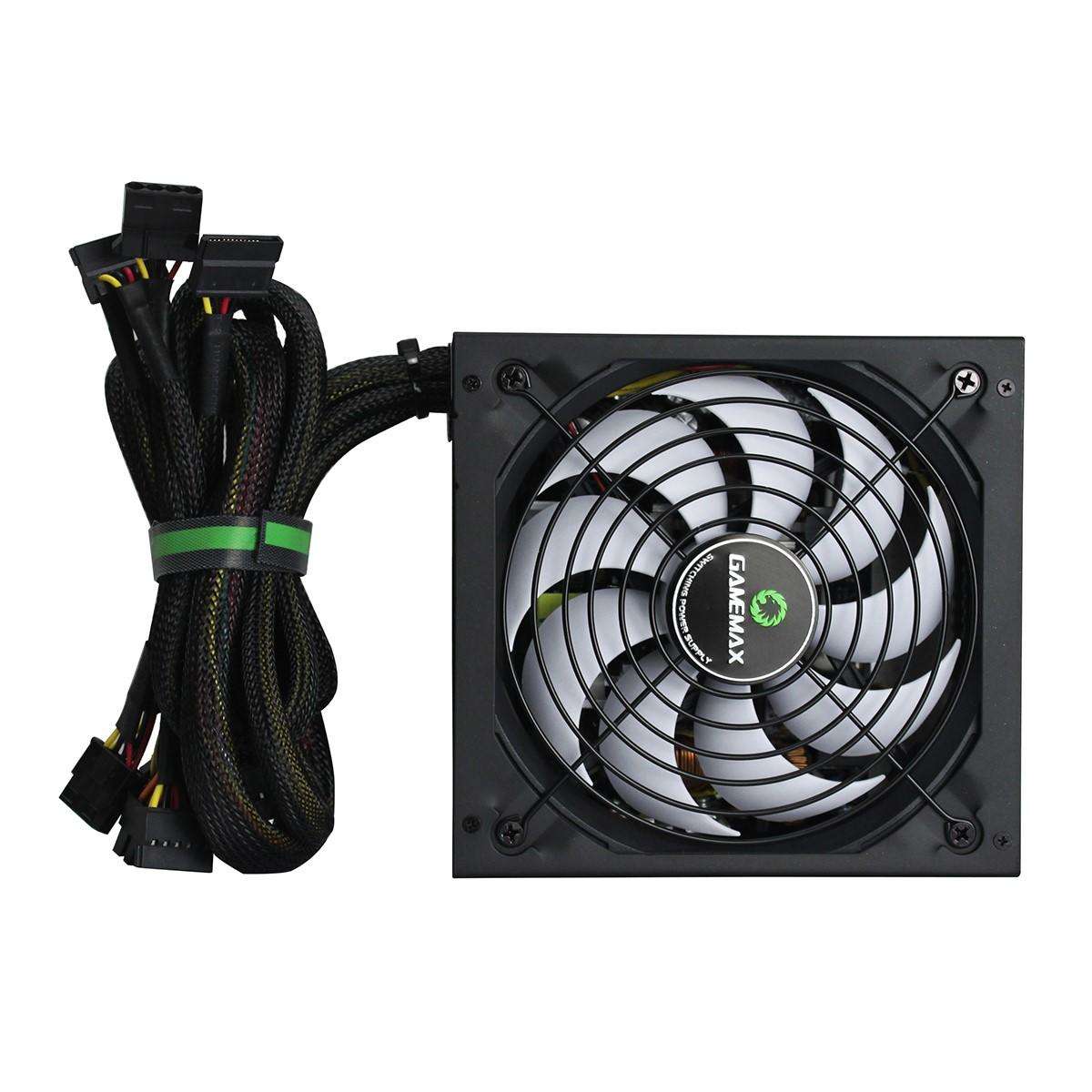

  • Elegant black PSU casing with full black mesh cables

  • ATX12V Ver.2.30 compliant with ATX12V Ver.2.31

  • High efficiency PSU, up to 85% efficiency

  • Single 12V Rail for high compatibility and extreme high current output

  • Longer 20 + 4 and 4 + 4 pins up to 550mm is easy for high-end tower chassis installation

  • 14cm silent black fan with smart thermal fan speed control circuit

  • Full protection functions with OVP / UVP / OPP / SCP / SIP

  • Safety and EMC certified by CE

  • ECO friendly by RoHS and Erp 2013 directives



  • PSU Specifications


    AC INPUT: 100-240 VAC 3.5-7A 50-60Hz
    DC
    Output
    Max

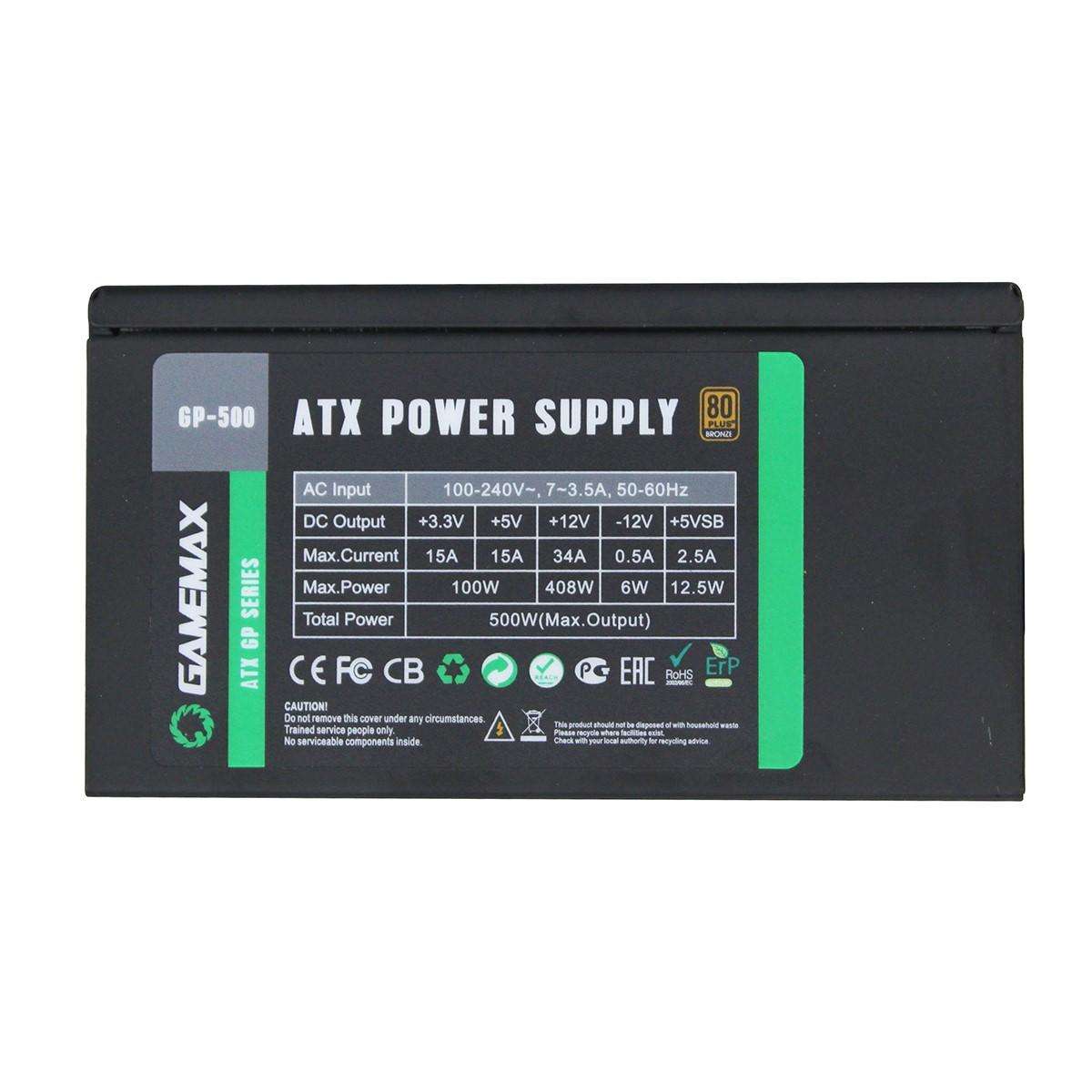

    +3.3V+5V+12V1-12V+5VSB
    15A15A34A0.5A2.5A
    500W


    Connectors


    20+4 Pin Main Connectors:

    1
    4+4 Pin 12V Connectors:

    1
    SATA Connectors:

    4
    4-Pin Molex Connectors:

    2
    6+2 Pin PCI-e Connectors:

    1


    Detailed Specifications


    Dimensions:158mm x 85mm x 150mm (W x H x D)
    Input Voltage:100-240 VAC
    Input Current:3.5-7A
    Input Frequency Range:50-60Hz
    PFC:Active PFC (>.99)
    Power Good Signal:100-500 ms
    Hold Up Time:>17ms
    Efficiency:> 81% (85% max)
    MTBF:> 100,000 Hours
    Protection:OVP / UVP/ OTP / OCP/ OLP/ OPP/ SCP
    Power:500W
    Operation Temperature:0-40癈
    Safety:CE / FCC / CB

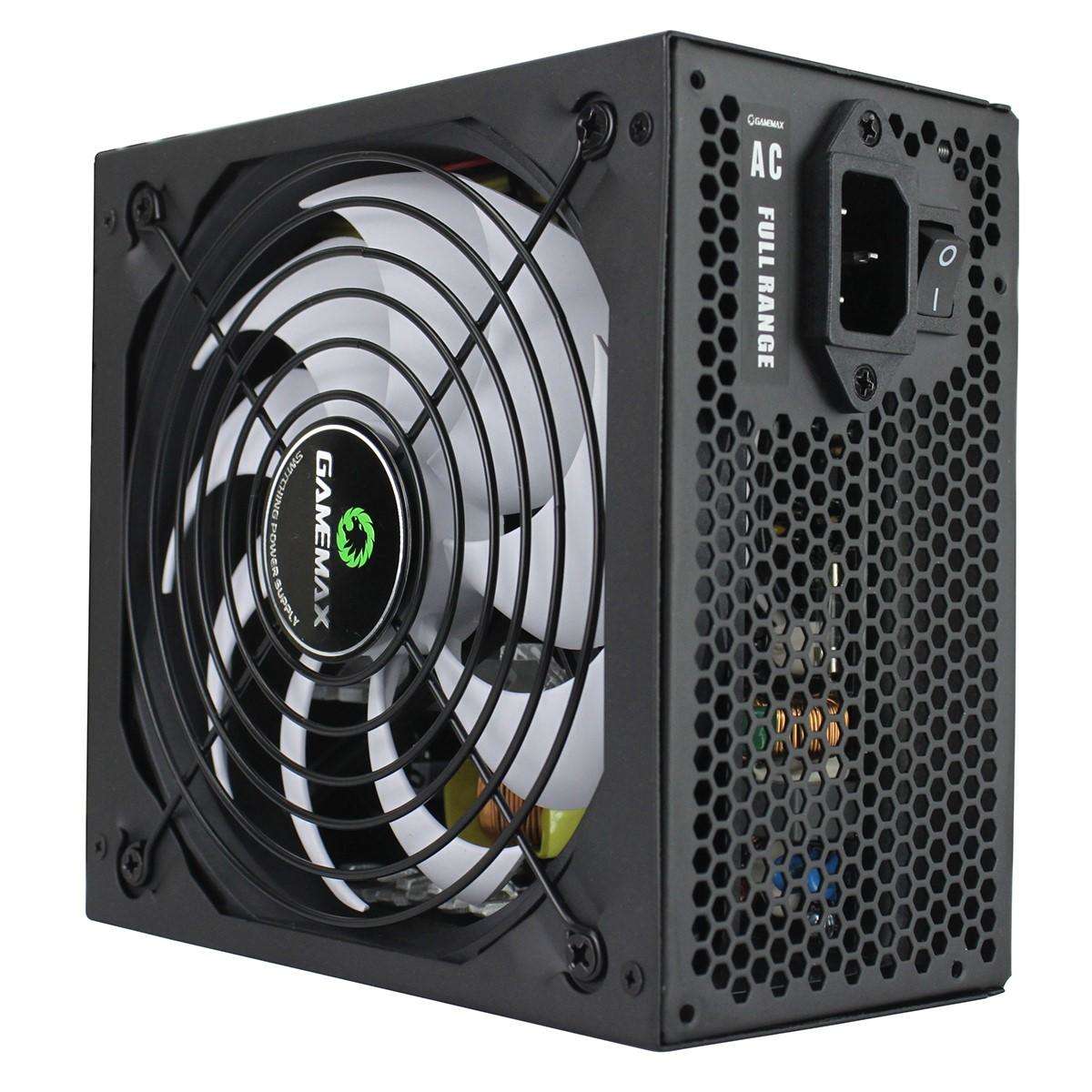

    Cooling:140mm Ultra Silent Fan
    Noise:<25dBa
    80 Plus Certified:Yes - 80 Plus Bronze

    General Specifications


    Manufacturer Part Number:GP-500
    EAN Number:6931858720045
    Has Mains Plug:No
    Colour:Black
    What's In The Box:Power Supply
    Screws
    Manual
    Unit (Product) Dimensions (mm):158mm x 85mm x 150mm (W x H x D)
    Packaging Dimensions (mm):300mm x 115mm x 180mm (W x H x D)
    Net Weight (KGs):1.628 KGs
    Gross Weight (KGs):2.046 KGs
