GM-1350
电脑机箱,机箱,电脑电源,一体机,键盘,水冷散热器
1.Efficiency exceed 87%@220V2.AC input full range design(100 to 240V.Optional)3.Thermal control technology4.Protection circuitry offer: OVP OPP SCP OCP UVP OTP5.100% burn-in under ambient temperature

1.Efficiency exceed 87%@220V
2.AC input full range design(100 to 240V.Optional)
3.Thermal control technology
4.Protection circuitry offer: OVP OPP SCP OCP UVP OTP
5.100% burn-in under ambient temperature upto 45℃
6.100% high voltage test under AC 1.5KV 10mA 3Sec
7.Standby power less than 1W,low power consumption
8.Low ripple,silent
9.MTBF:100K hours at 25℃

Model NO.GM-1350
Rate Power1224W
Peak Power1350W
EfficiencyOver 87%
AC Input Range180V-240V
Active PFC UniversalYes
Temperature ControlYes
12V Rail+ 12V
Housing Materialblack coating
Fan &Fan Guard140mm black fan +silver fan guard
I/O SwitchYes
Modular/
Power CordYes
Housing Size165*150*86mm
PackagePE bag & 10pcs/brown box
M/B(20+4P)1(exposed500mm)
CPU(4P)/
CPU(4P+4P)1(exposed 500mm)
PCI-E(6)/

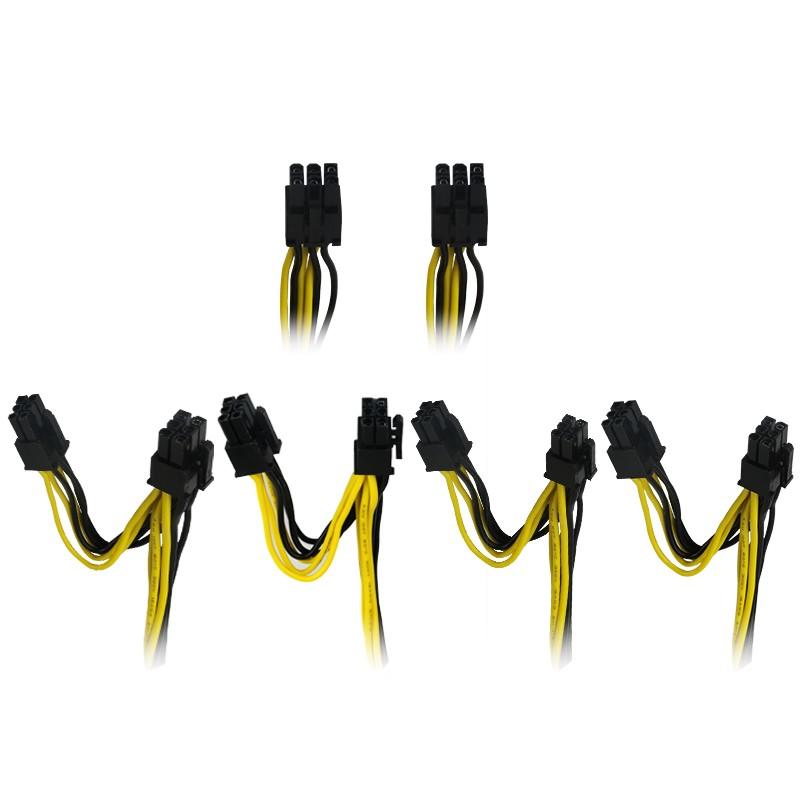

PCI-E(6+2)P6(exposed 500mm)
SATA6(exposed 500mm)
Molex 4Pin4(exposed 500mm)
Floppy 4Pin/
Input AC180-240Vac 18-9A 50-60HzFuse rating 20A 250Vac
Output Voltage+ 12v+5v +3.3V -12V+5Vsb
Output Current102A20A20A0.5A3A
Max.Output1224W100W21W
Rated Power1350W
