D65
Super,lower,CPU,Blower,cooler,for,mini,PC

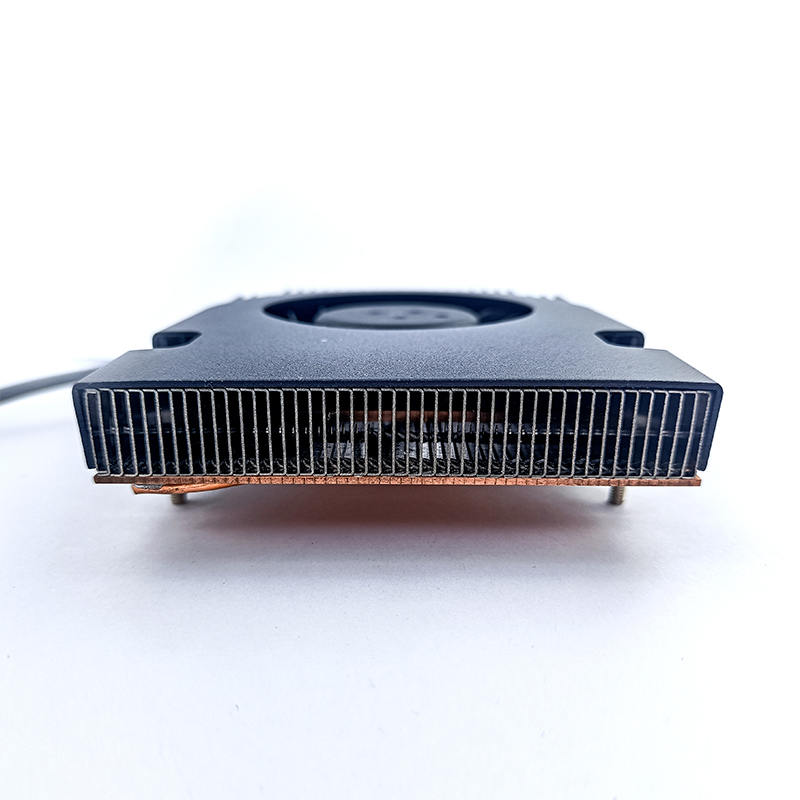

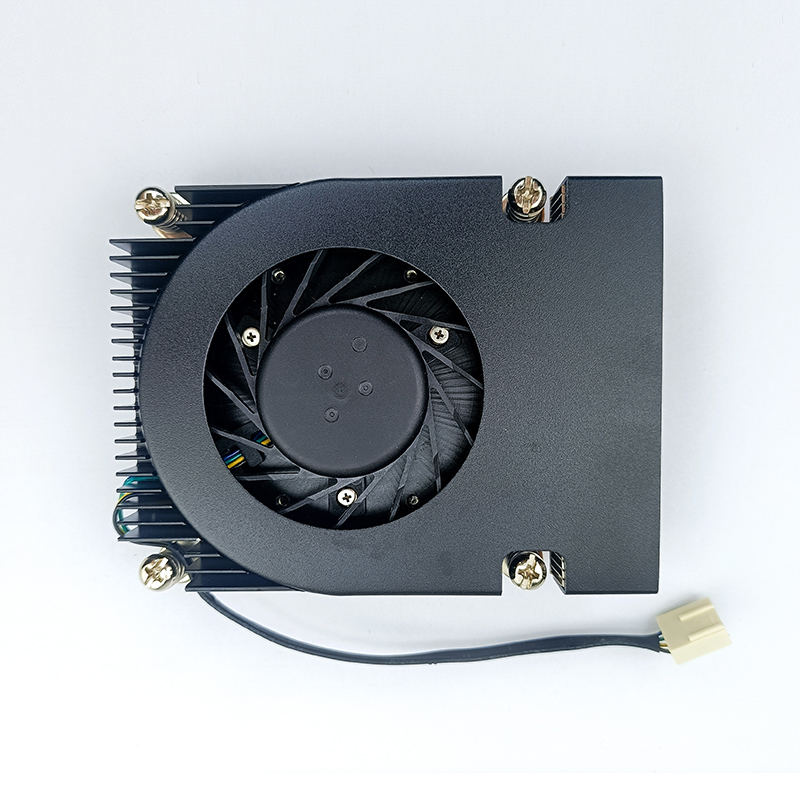

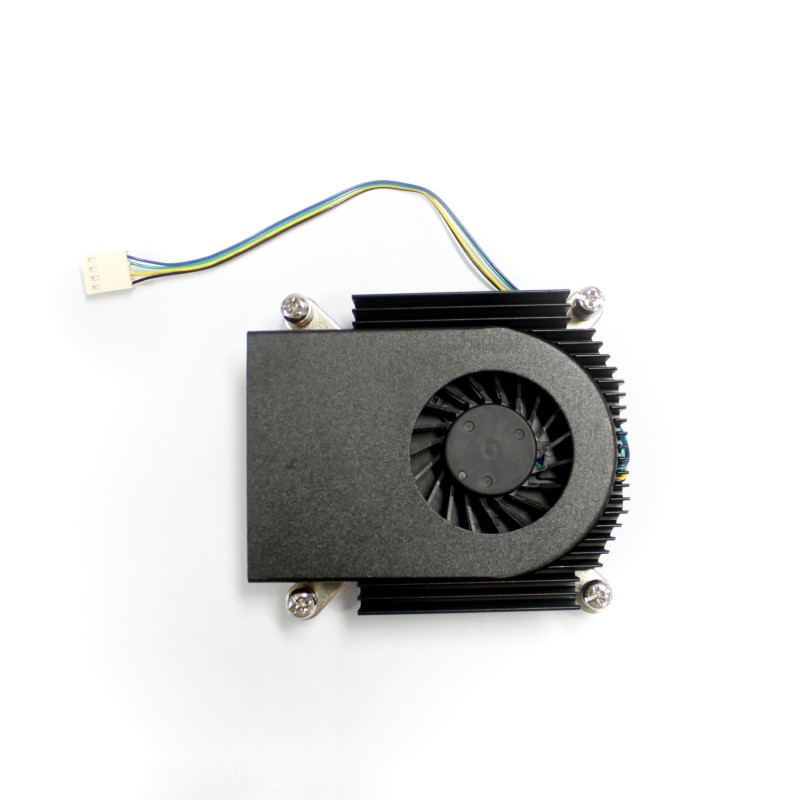

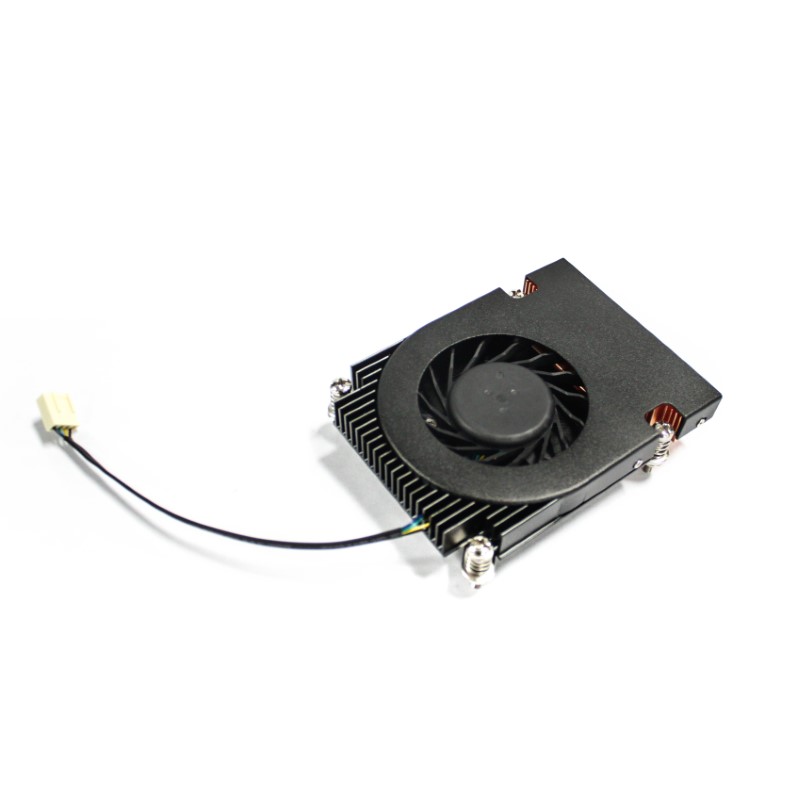

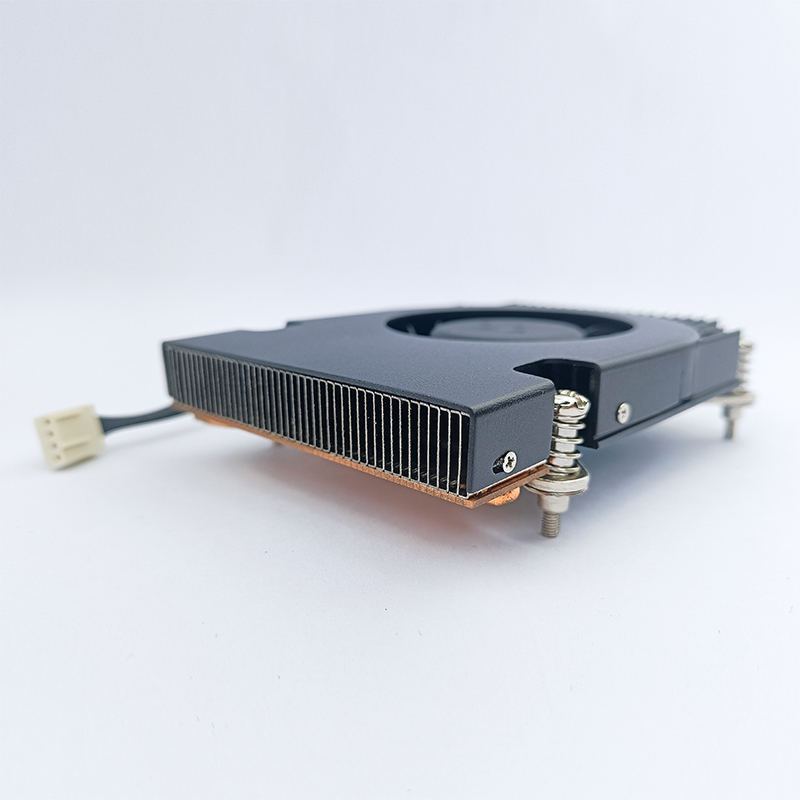

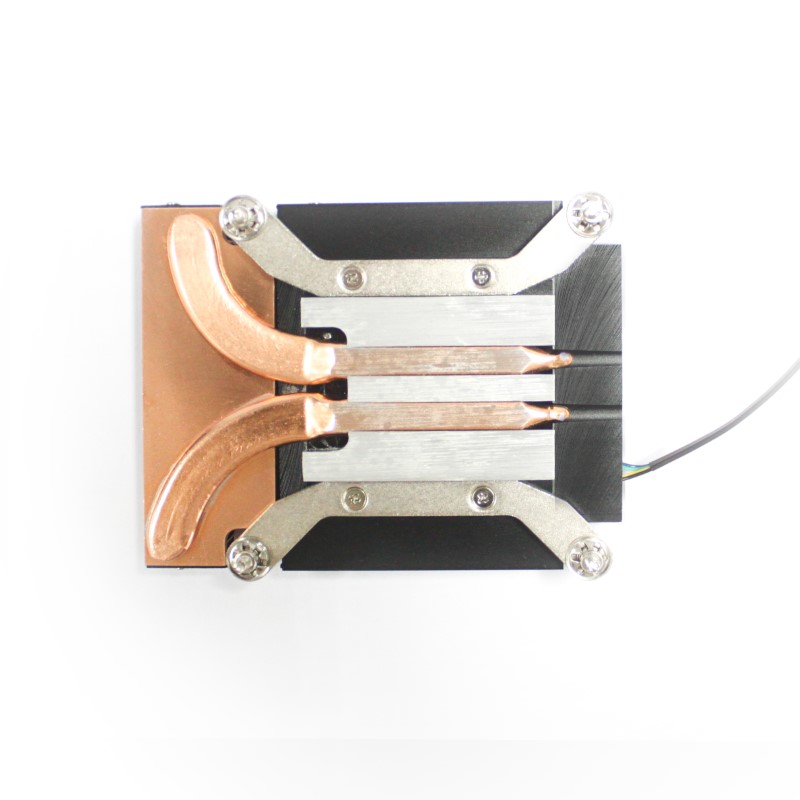

Super lower CPU Blower cooler for mini-PC
Support Intel LGA115x and 1700
65W TDP
8010 ball bearing fan
17mm height
Turbo fan
1x PWM 4PIN
ITEMDESCRIPTION
RATED VOLTAGE(额定电压)12 VDC
OPERATION VOLTAGE(允许电压)10.8 V ~ 13.2 V DC
START VOLTAGE(启动电压)(ENVIRONMENT  TEMPERATURE  AT  -10 TO +55)  (环境温度  -10—  +55)7.0VDC
RATED CURRENT(额定电流)0.20A
INPUT POWER(输入功率)2.4W
SPEED(转速)2500RPM.± 15%
MAX.AIR FLOW(最大风量) (AT ZERO STATIC PRESSURE)8.82CFM
MAX.AIR PRESSURE(最大风压) (AT ZERO AIRFLOW)6.18 mm-H2O
ACOUSTICAL NOISE (AVG.)  (最高噪音)32.6dB(A)
INSULATION STRENGTH(绝缘强度)10 MEG OHM MIN. AT 500 VDC(BETWEEN FRAME AND (+) TERMINAL)
(在通入 500 伏直流电压条件下,外框与端子线间阻抗不低于10兆欧)
DIELECTRIC STRENGTH(介质强度)5mA MAX. AT 500 VAC 60Hz ONE MINUTE.(BETWEEN FRAME AND(+) TERMINAL)
(在通入 500 V/60Hz 交流电一分钟条件下,外框与端子线 间电流不超过 5mA
LIFE EXPECTANCY(预期寿命)40,000 HOURS CONTINUOUS OPERATION AT   40 WITH 15~65 %RH
(在环境温度为 40℃,相对湿度为 15~65 %RH 的条件下预期能正常工作
40,000 小时)
LEAD WIRE(线材)2510-4P(防呆)   1571-28AWG  //绿/蓝并线全长 180±10MM(离端子
1mm 加热缩管 120±10MM ) BLACK      WIRE NEGATIVE (-) YELLOW     WIRE POSITIVE (+) GREEN      WIRE SIGNAL(FG)
BULE       WIRE SPEED(PWM)
ELECTRONIC CIMPONENT(电子元件)ALELECTRONICCIMPONENTWORKINNORMAL CONDITION WHEN85
所有电子元件耐温≥
85
SIGNAL SOURCE(信号源)FG  SIGNALFG 信号)
SPECIFIC  FUNCTION(特殊功能)REVERSE PROTECTION(反向保护)
AUTO REBOOT PWM(自动重启、锁机保护及占空比自动调速功能)
