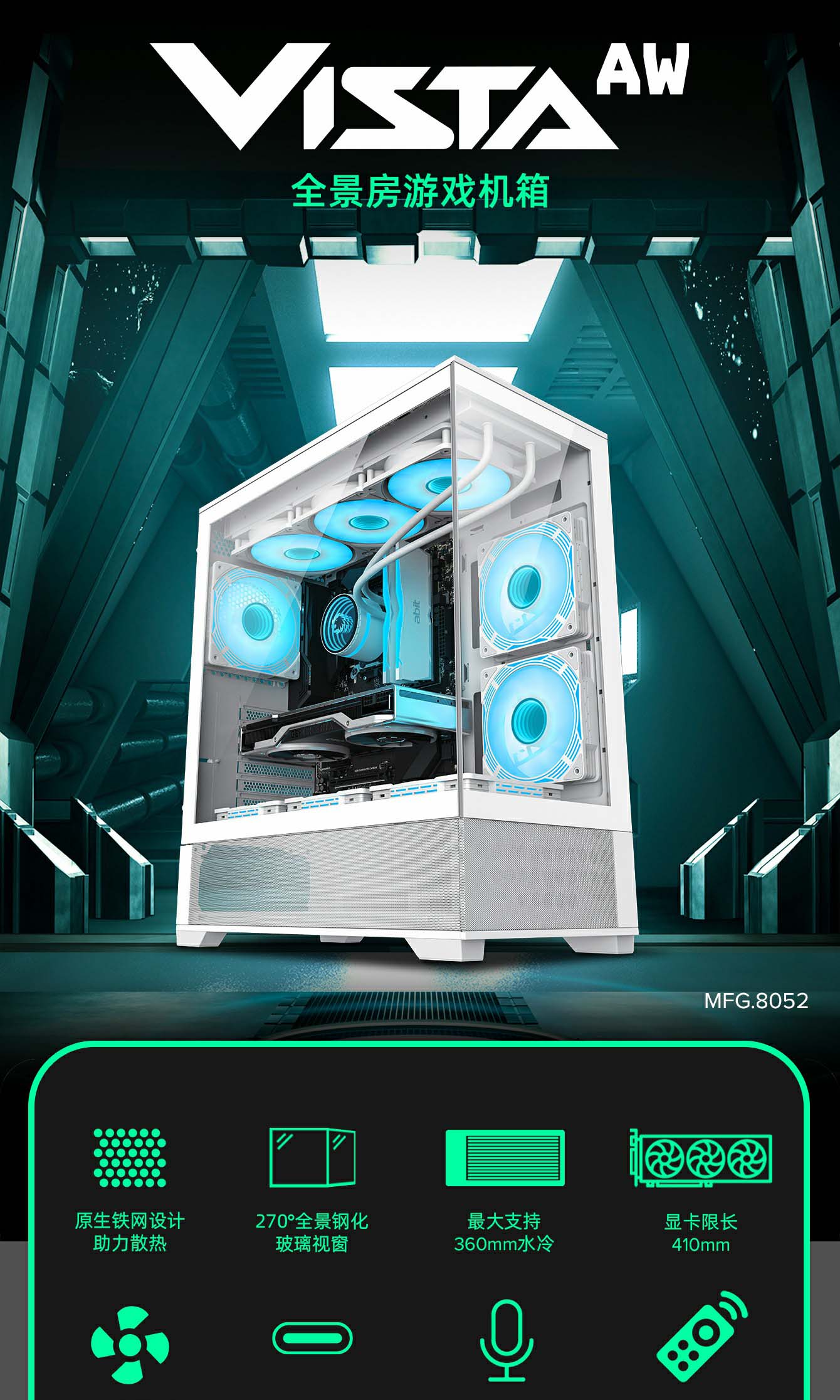

8052 白色 全景房 ATX4.0
EATX,Glass,full,view,Gaming,computer,case,

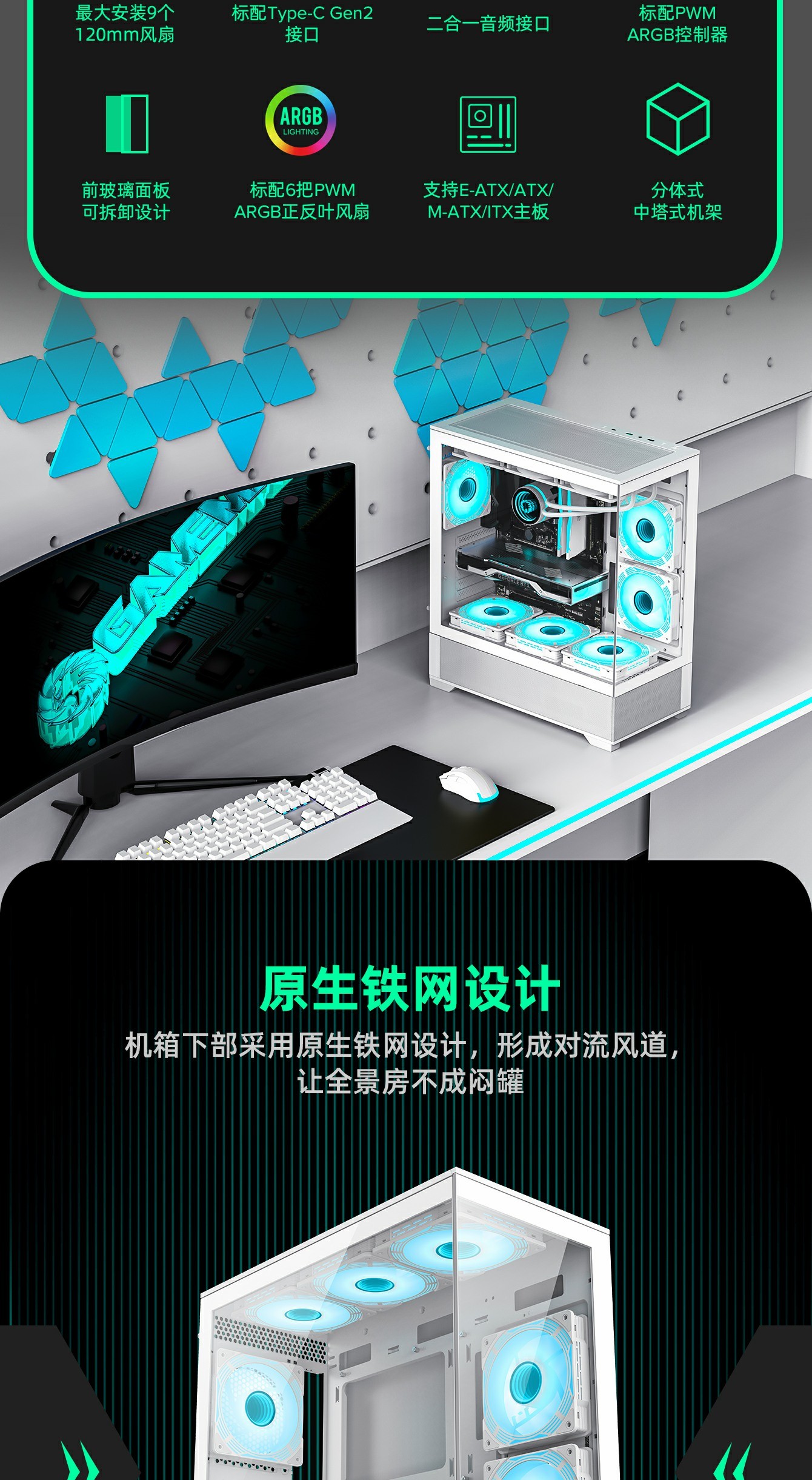

Mid-tower PC ATX case - Aesthetic looks, airflow focus, easy installation, and ample room for large GPU and cable management. Good build quality computer case made of heavy-duty steel metal frame and 4.0mm tempered glass.
Computer Case Focus on Cooling- The modular motherboard I/O allows you to move the motherboard to a higher/lower position for air-cooled/water-cooled systems. To ensure adequate airflow, a Total 6x120mm ARGB pre-installed (3x reversal and 3x forward fans, Fine mesh panel at the top, and on the PSU shroud side, help with great ventilation
?Easy Build Gaming PC Case- This case has a lot of flexibilities convenient for components installations: Removeable 5x Sides, Glass to Glass full view; Spacious PC case with Easy Cable Management, A seal plate on the top radiator bracket ensures no pressure leak when installing smaller than a 360 radiator/3x120mm fans at the top
?Latest Gen. Large Graphics Card Ready- This Mid-tower Case is compatible with the largest NVIDIA 4000 series cards thanks to its ample room for graphics cards up to 410mm in length, and 165mm in height (for air cooling mode)

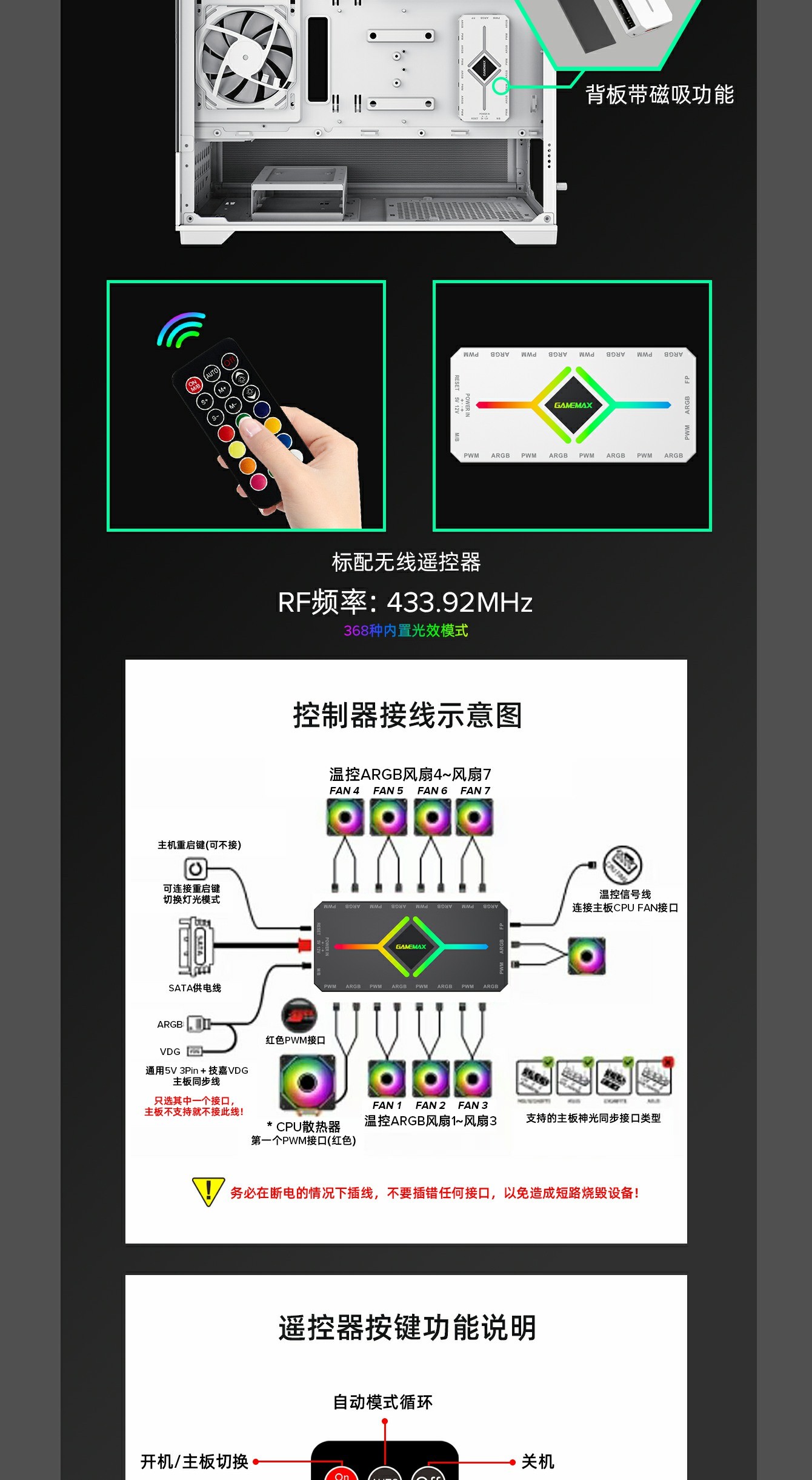

?V4.0 ARGB HUB-PWM |5v ARGB Sync, Remote Control multi-featured hub, Magnetic design for easy installation, the magnet at the bottom of the controller can be firmly attached to the metal plate of the chassis, making installation easy!
 MFG(8852)  VISTA SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)MID-TOWER
ChassisSPCC : 0.6mm
PSU Form FactorBottom/ATX

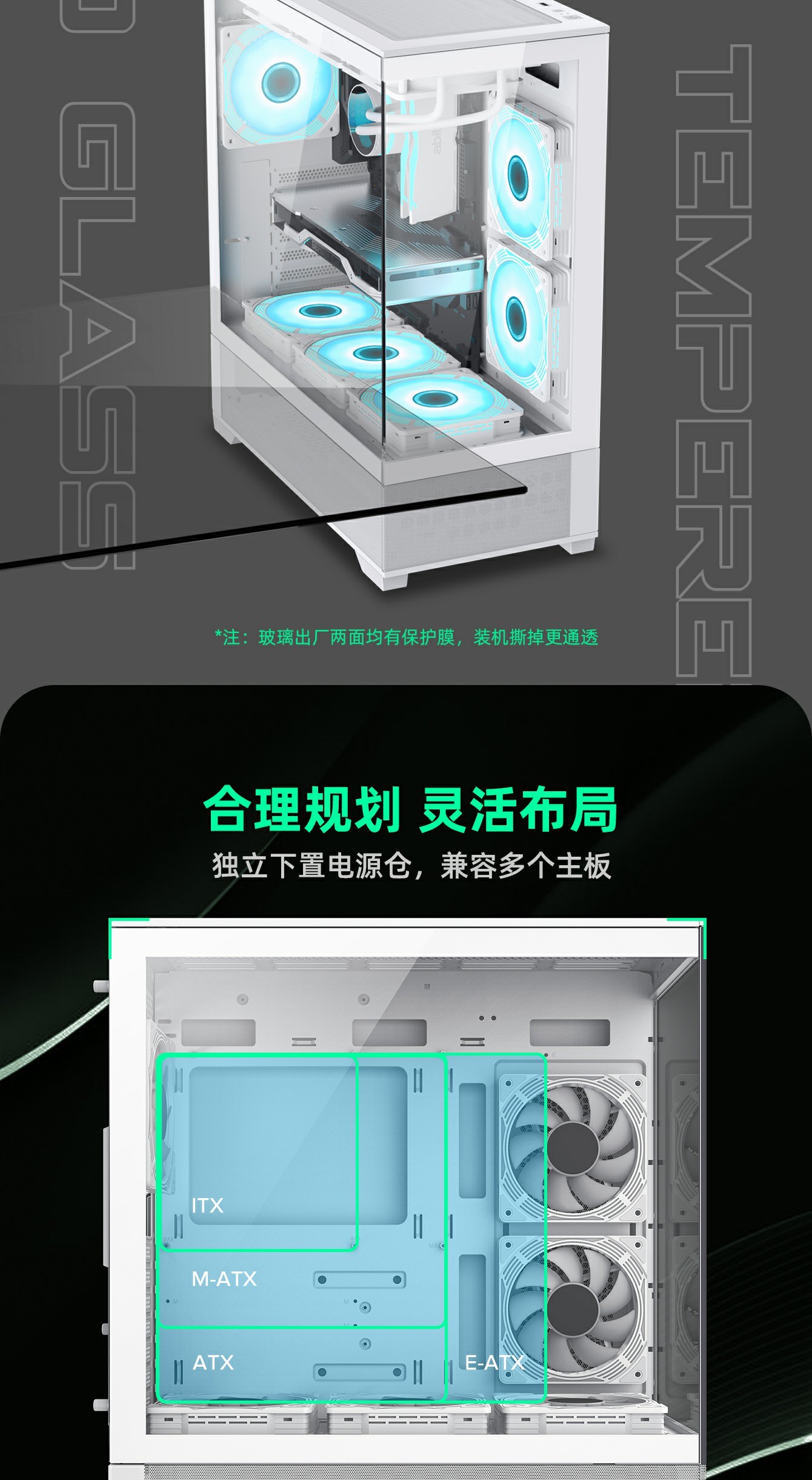

M/B Form FactorE-ATXATXM-ATXITX

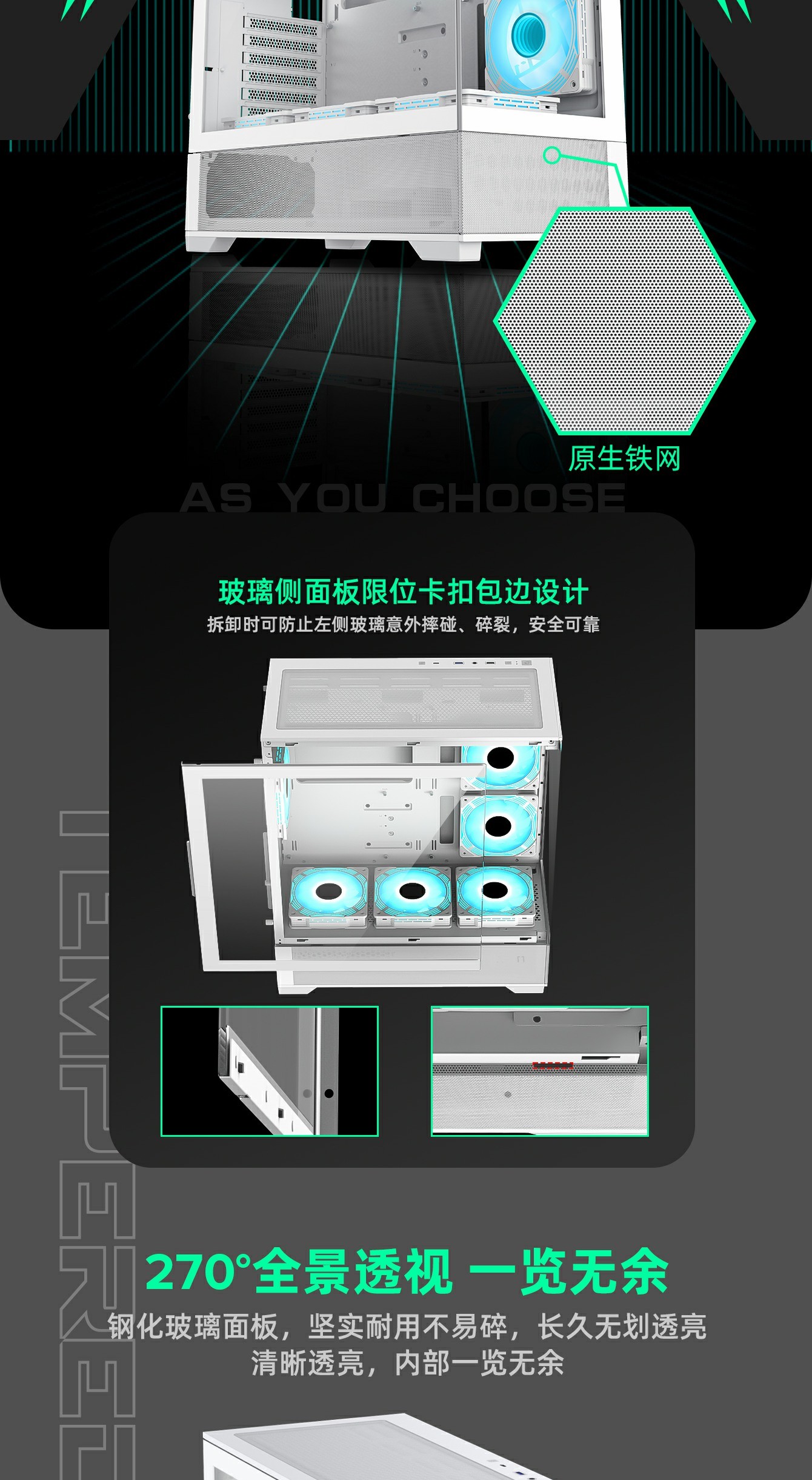

Front PanelTempered Glass,Mesh
Top Panelmetal cover
Side PanelLeftTempered Glass,Mesh
RightMetal cover

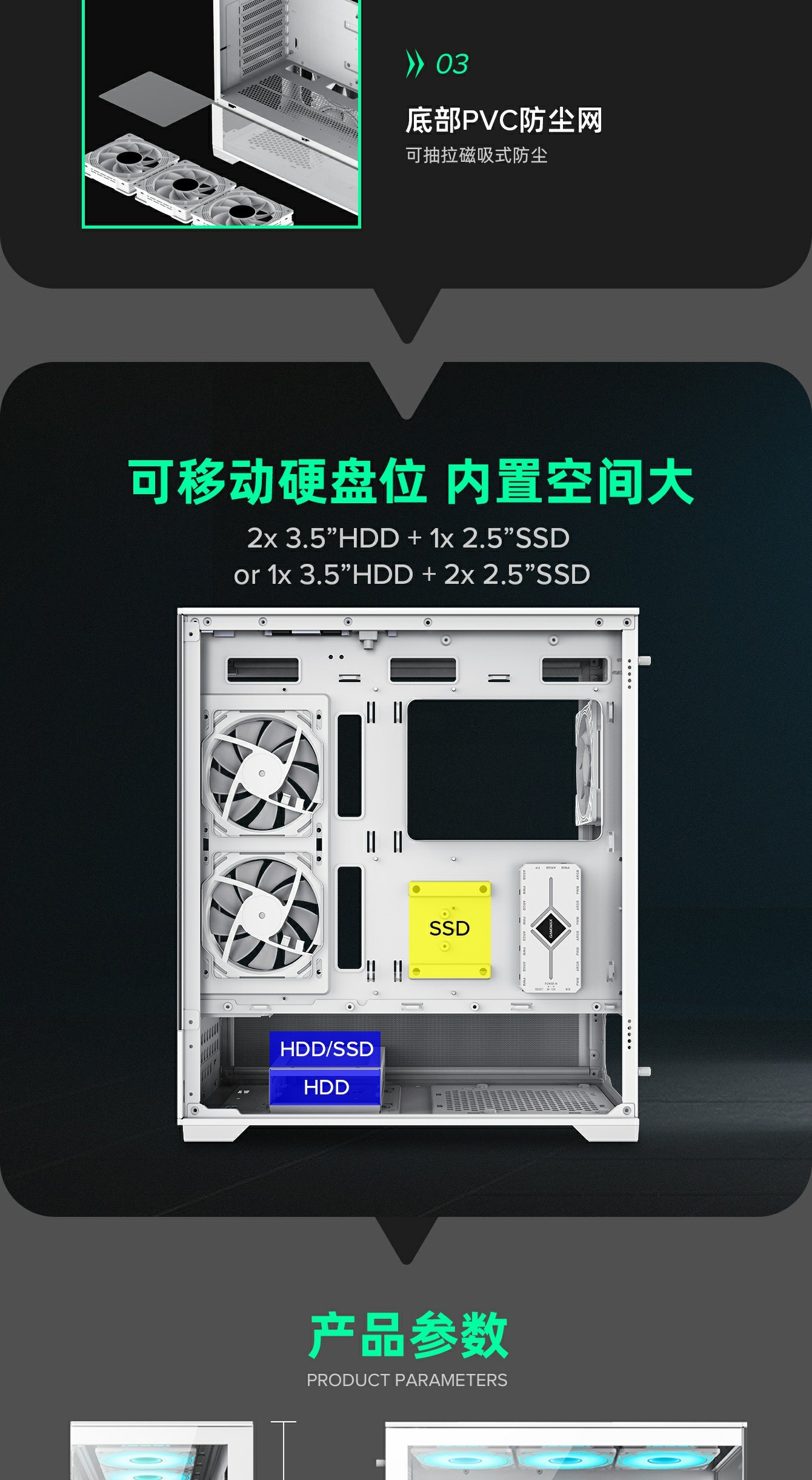

Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*2 (1*3.5HDD+2*2.5SSD  or  2*3.5HDD+1*2.5SSD)

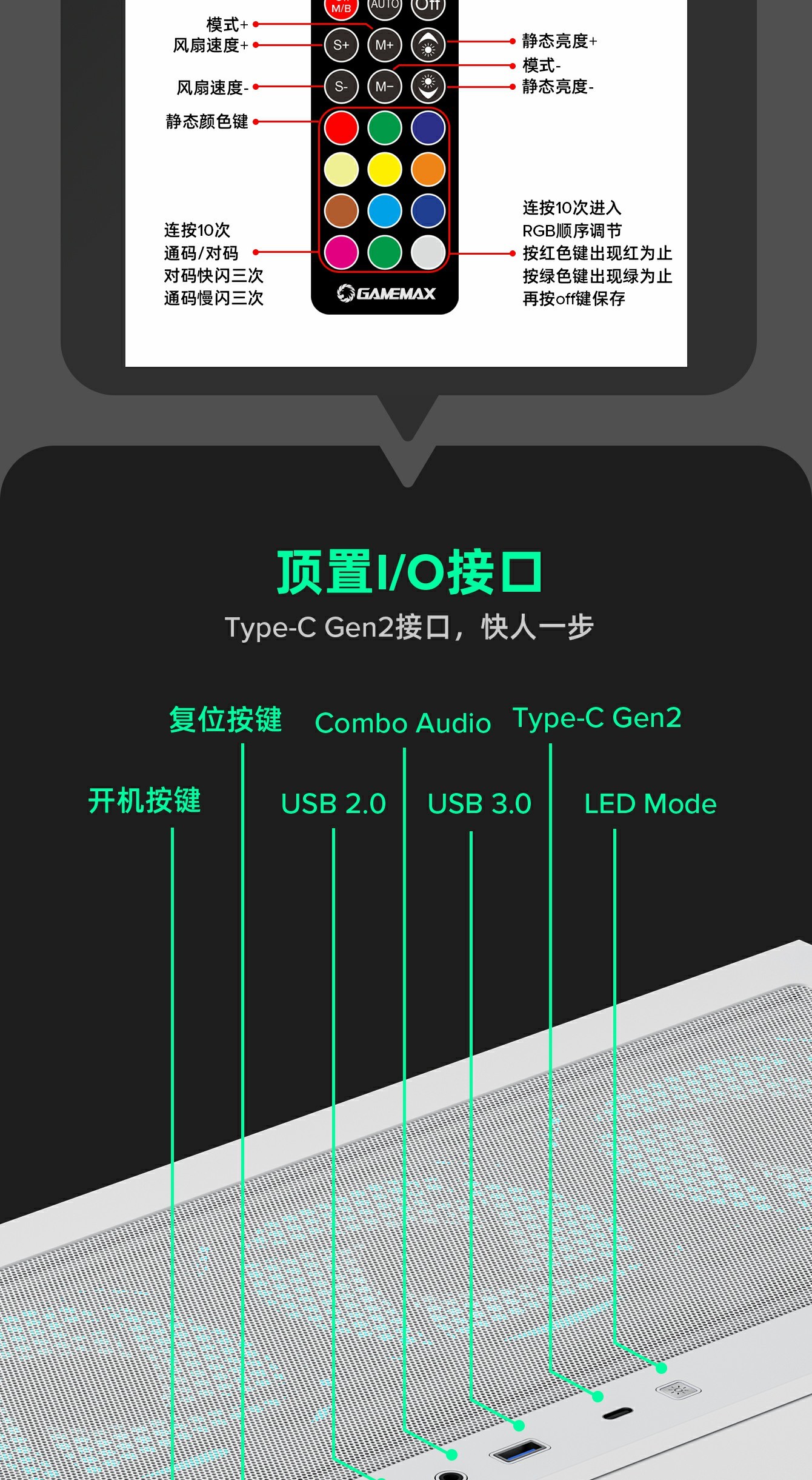

I/OButtons*3
USB2.0 Port(s)*2
USB3.0 Port(s)*1
USB3.2 Port(s)*1 x Type-C (Gen2,Type-E,Mini 20pin) (optional)
Audio Support*1 (COMBO AUDIO)
RGB ControllerV4.0 ARGB HUB PWM REMOTE (optional)
Controller max. fans*9
RGB Controller max. LED strips*9
Remote (IR or RF)*1

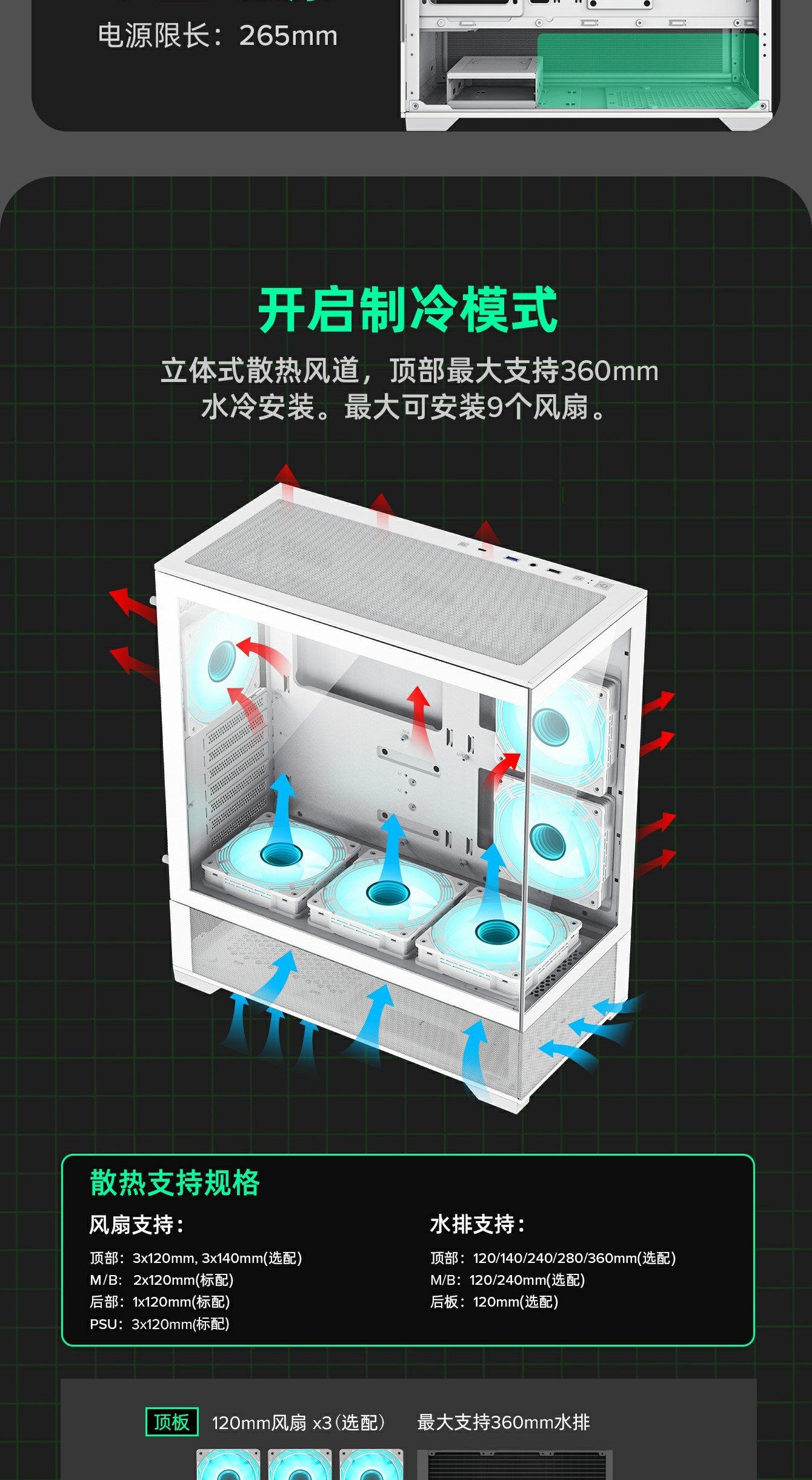

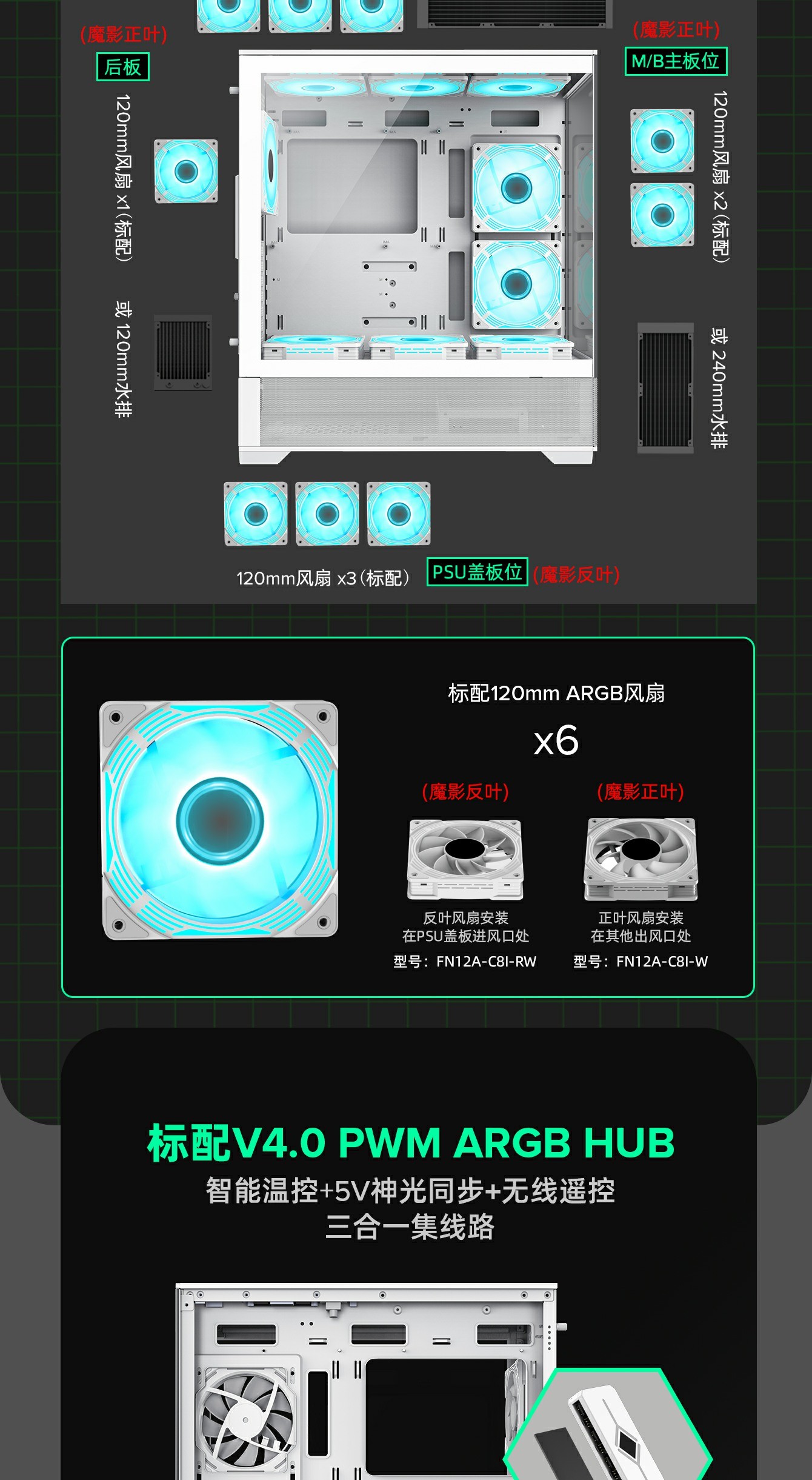

Cooling Fan
Support
Front*0
Top3x120mm ,2x140mm (Fan optional)
Rear1x120mm (FN12A-C8I) (Fan optional)
M/B Cover2x120mm (FN12A-C8I) (Fan optional)
PSU Cover3x120mm (Reverse fan blade)(FN12A-C8I-R) (Fan optional)
Water Cooling Support
(Radiator Size)
Front*0
Top120mm, 140mm,240mm,280mm,360mm
Rear120mm
M/B Cover120mm, 240mm

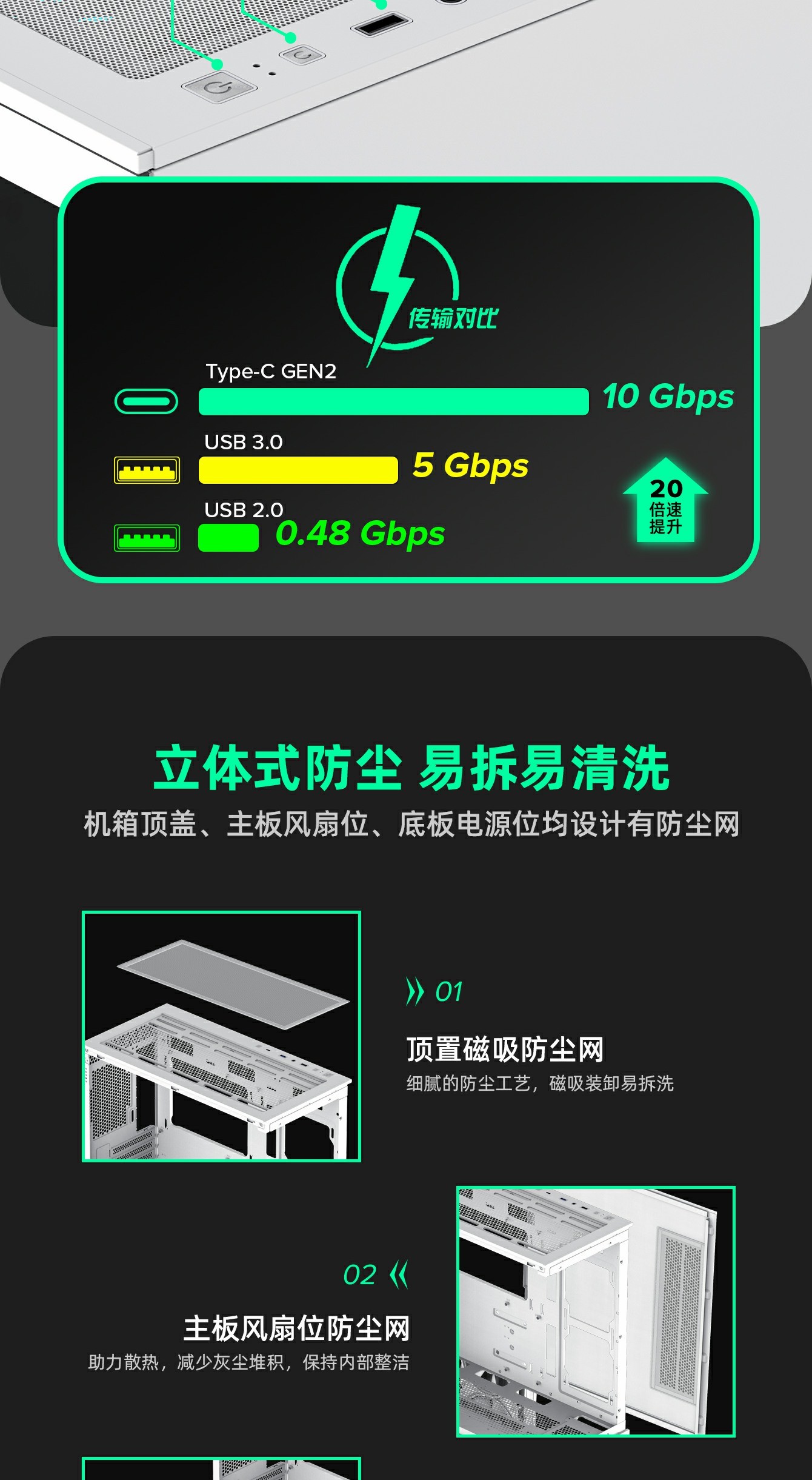

Dust CoverBottom, right side panel and top cover with dust filter

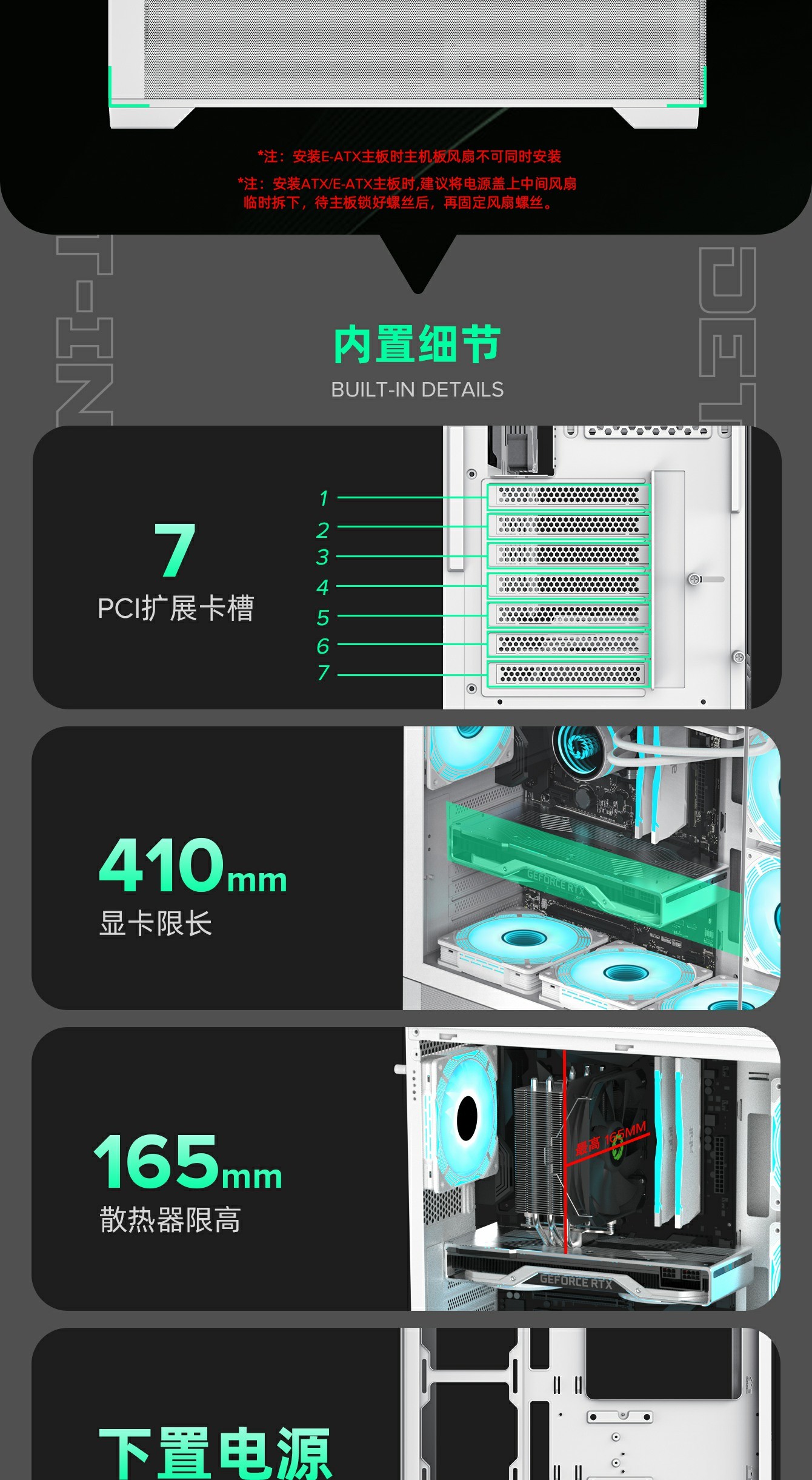

Slots*7
Carton & LogoGAMEMAX

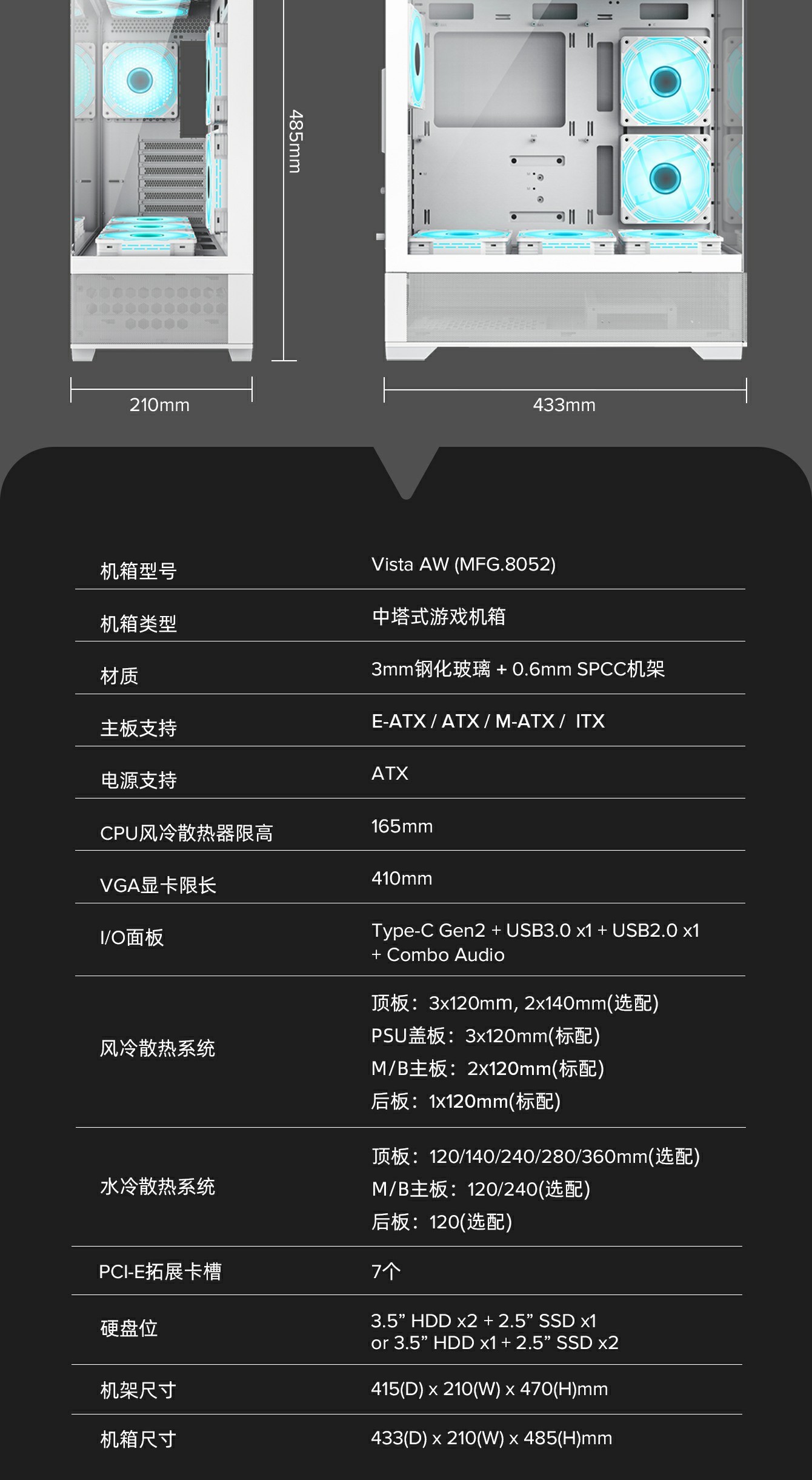

DimensionsChassis(L)415*(W)210*(H)470mm
Full Case (inc Fascia)(L)433*(W)210*(H)485MM
Carton(L)552*(W)282*(H)496MM
VGA Card LengthUp to 410mm
CPU Cooler Height165mm
SPS LengthUp to 265mm
Cable Management Depth25mm
