ITX 02
迷你,ITX,桌面电竞机箱
迷你 ITX 桌面电竞机箱

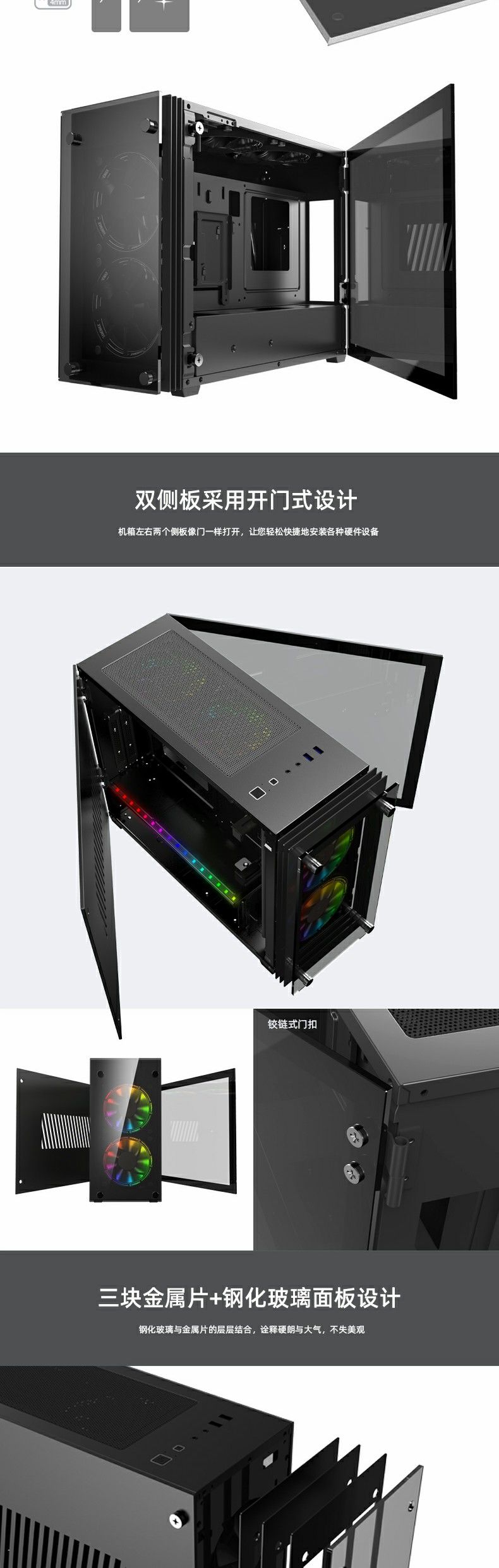

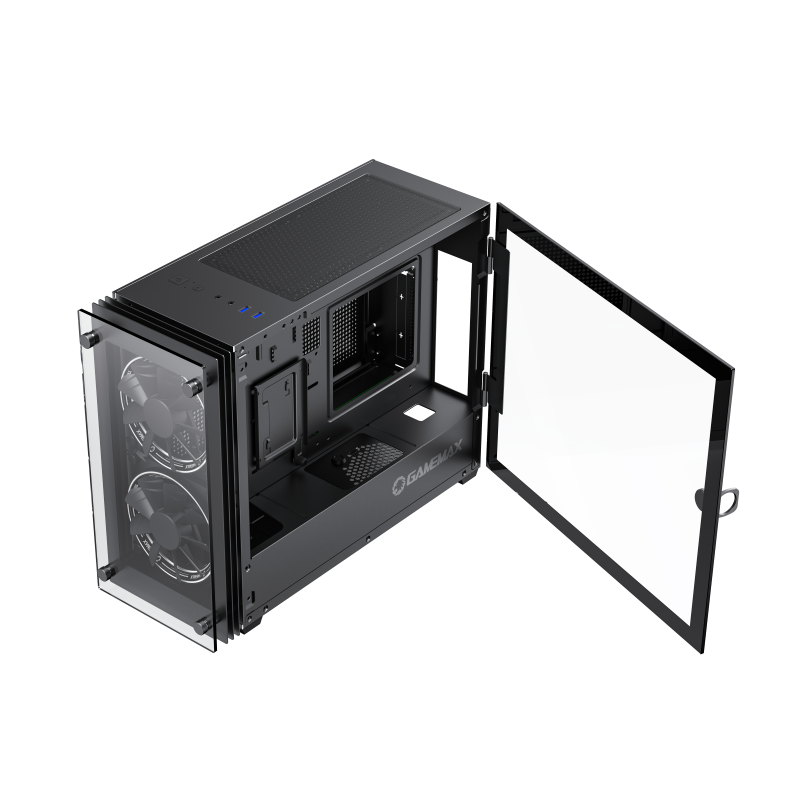

双侧拉门设计
支持240水冷,轻松连接

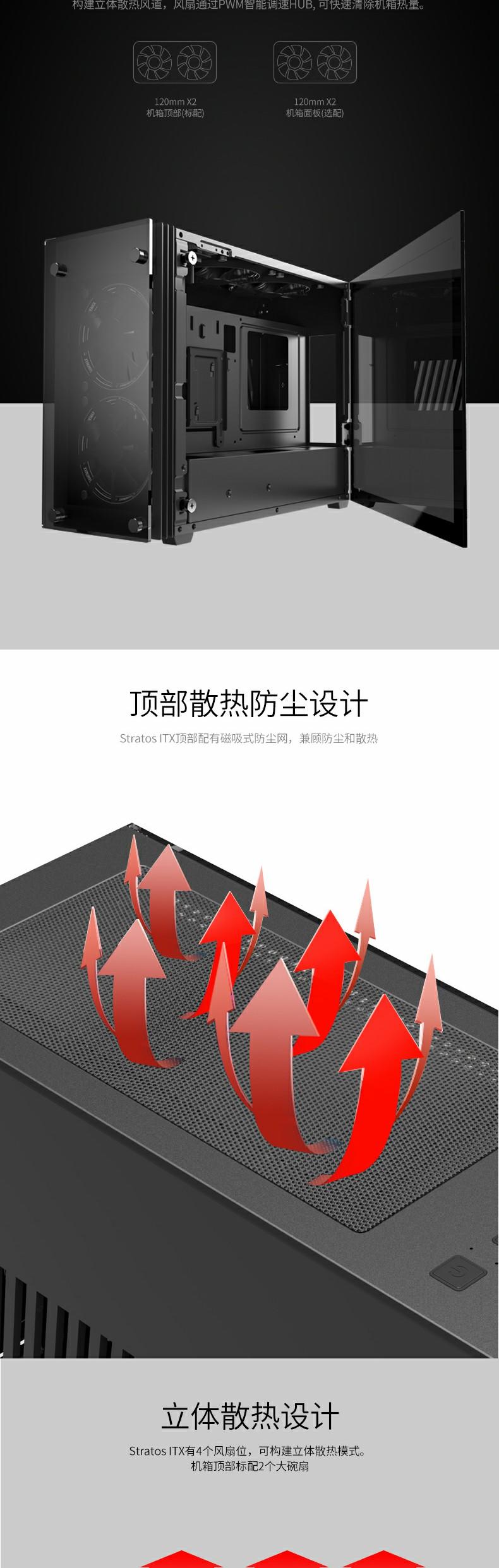

前后最大散热气流设计
迷你尺寸的高性能
秀出你的个性电脑!

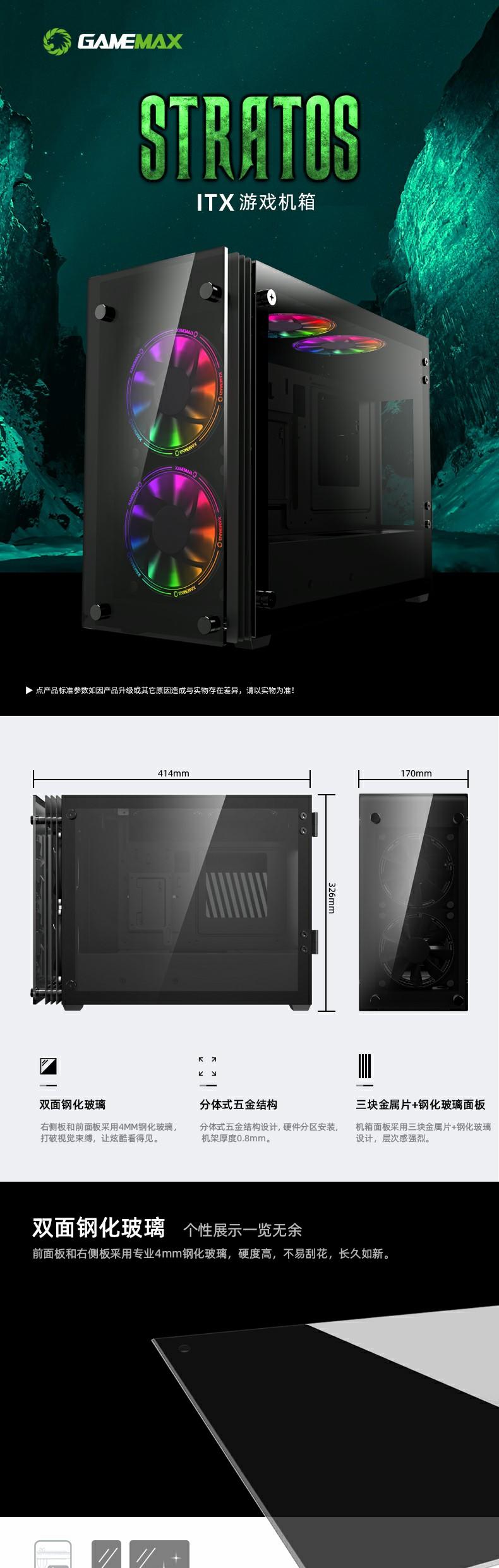

ITX02 (STRATOS)
SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)Mini ITX
ChassisSPCC :0.8mm
PSU Form FactorBottom/SFX
M/B Form FactorMini ITX
Front PanelABS,Tempered Glass
Top Panelmetal cover
BrandingBoxGameMax standard
Unit1
Side PanelLeftPMMA (acrylic)
RightTempered Glass
External Drive Bay(s)5.25" (ODD)*0
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*0
2.5" (SSD)*2
I/OButtons*2  (P/R)
USB2.0 Port(s)*0
USB3.0 Port(s) USB3.1 GEN1*2
HD Audio Support*1
Fan Controller*0

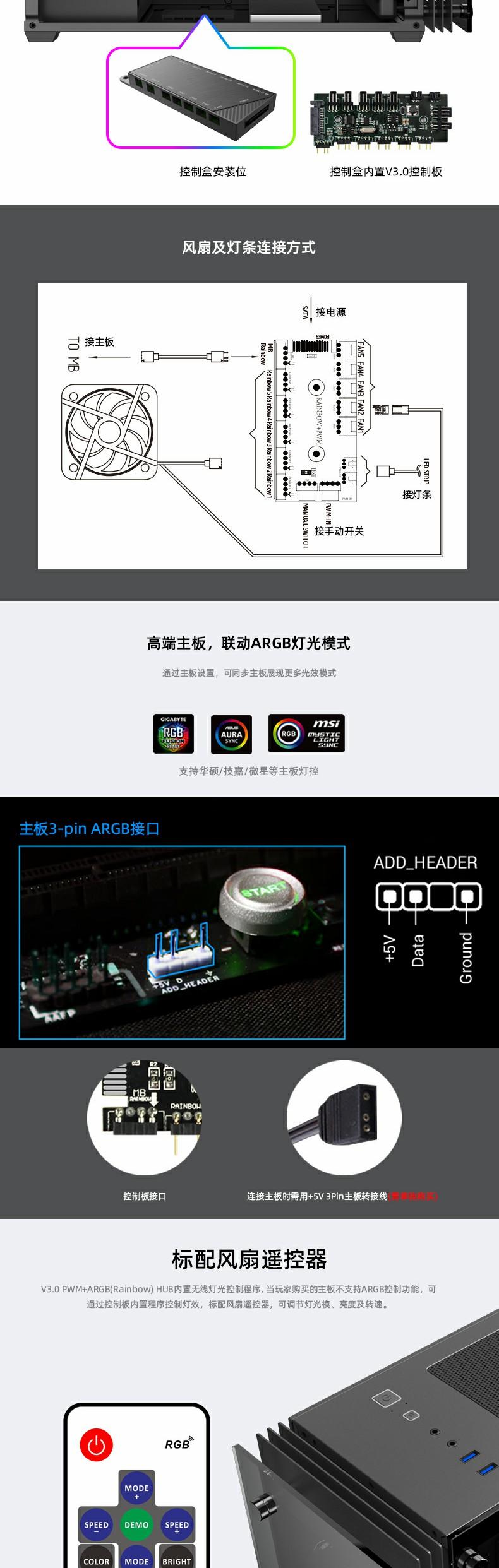

RGB Controller*1
Controller max. fans*5
RGB Controller max. LED strips*2
Remote (IR or RF)*1xRF
Cooling Fan  SupportFront2x120mm (Optional)
Top2x120mm  (ARGB GMX-FN12-RBB)
Rear0
Left Side0
PSU Cover0

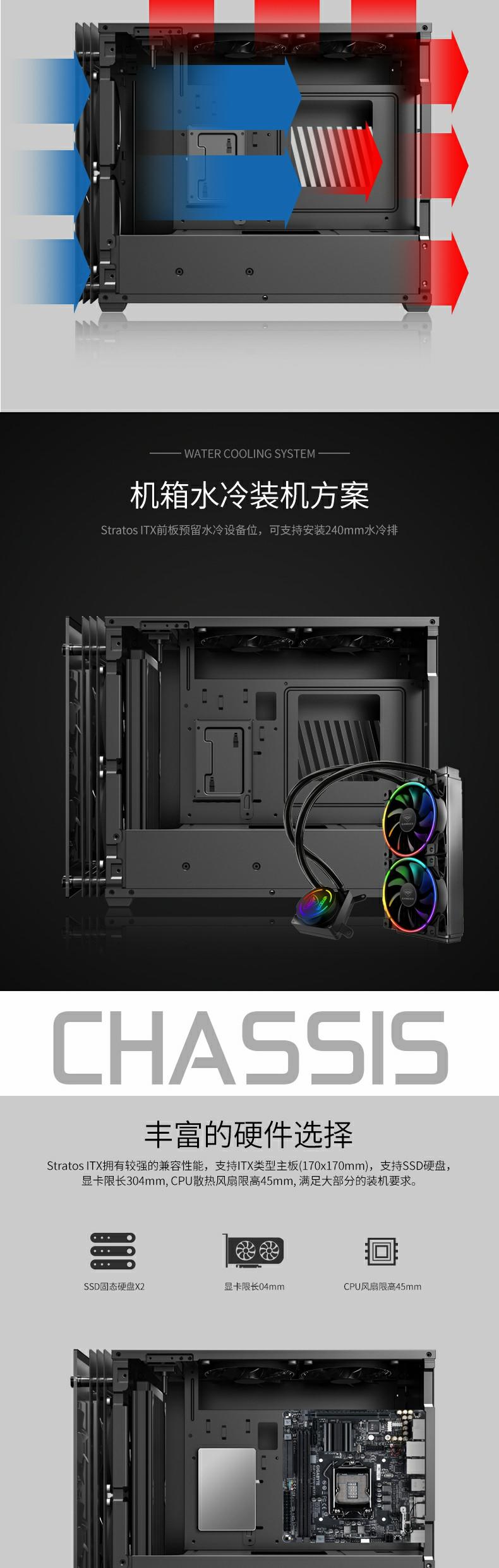

Water Cooling SupportFront120mm*1 or 240mm*1
Top0
Rear0
Dust CoverBottom  and top cover with dust filter
Slots*2
Carton & LogoGAMEMAX
DimensionsChassis(L)375*(W)150*(H)315mm
Full Case (inc Fascia)(L)426*(W)170*(H)325mm
Carton(L)362*(W)245*(H)510mm
Net Weight (Kg)5.1kgs
Gross Weight (Kg)6.1kgs
VGA Card Length320mm
CPU Cooler Height50mm
Cable Management Depth80mm
