8009-CE-EATX
8009,Silent,Chassis

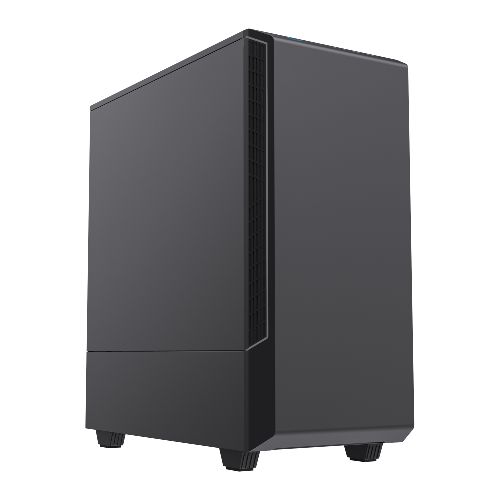

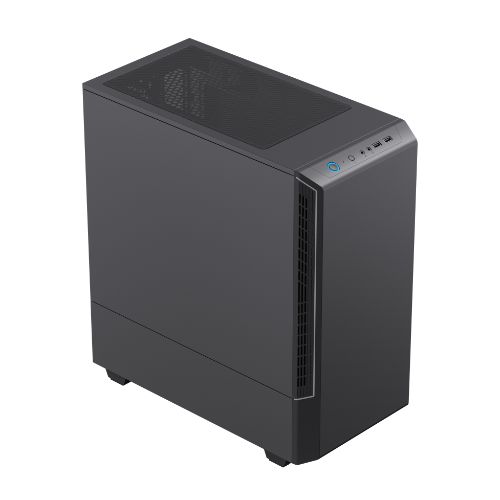

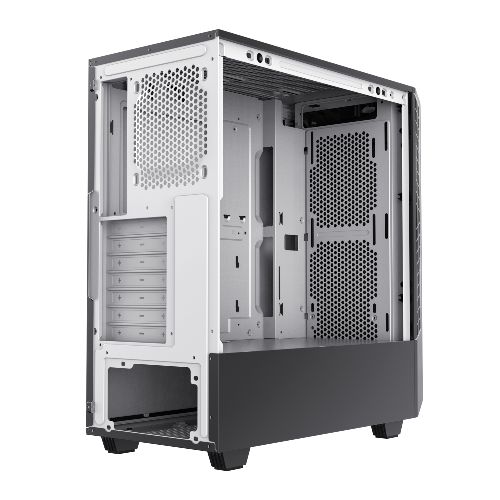

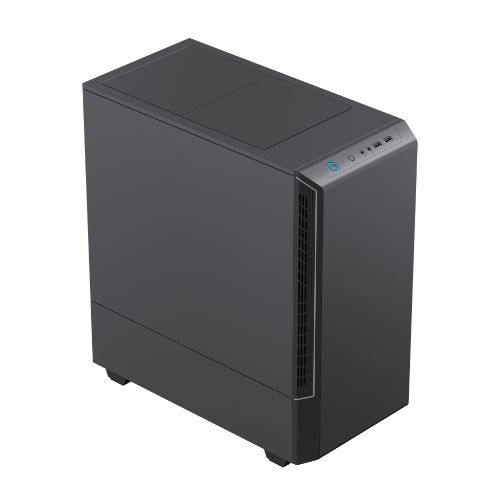

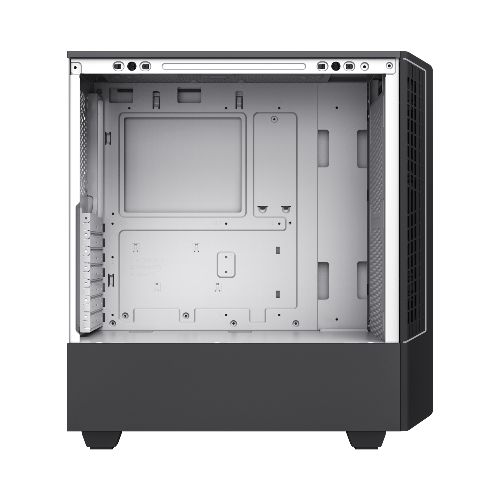

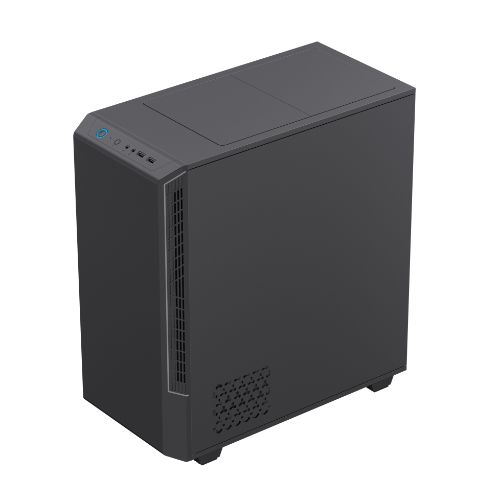

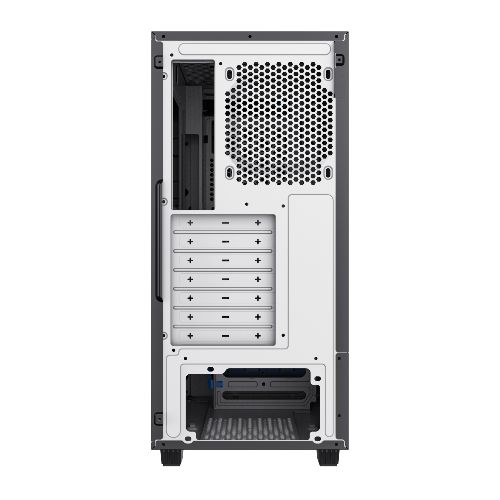

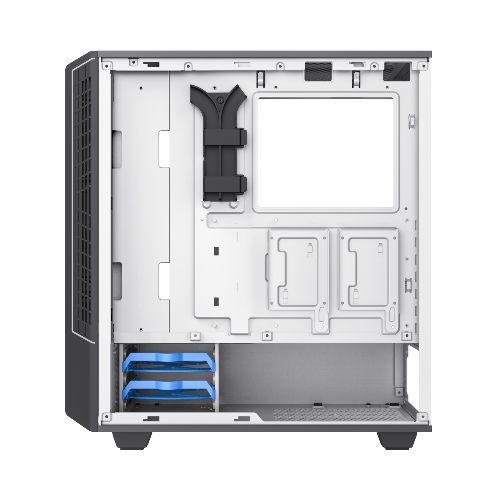

Mid-Tower 8009-CE-EATX, Workstation Case, Pass CE/EMI design, and is a simple and elegant design
The 8009 allows users to create a Silent,Clean and powerful system by optimized cooling channel
The 8009 compact mid-tower case features a unique one-pcs screw easy open side panels.
Optional both side noise-killing metal panels for giving a silence system.
The mute pad on top panel of Chassis, for addtional silent solution.
Model8009SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)EATX(330*305mm), ATX,Micro, Mini ITX
ChassisSPCC  Rear:0.8mm, Left/right/Top/front:06mm,other:0.5mm .
Top and bottom:white, Black painting interior
PSU Form FactorBottom/ATX
M/B Form FactorEATX(330*305mm)ATXM-ATXITX
Front PanelABS
Top Panelmetal cover+ABS unmute cover
Side PanelLeftmetal cover
Rightmetal cover
External Drive Bay(s)5.25" (ODD)*0
3.5"*0
Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*2
I/OButtons*2
USB2.0 Port(s)*0
USB3.0 Port(s)*2
USB3.1 Port(s)*1 (type-c gen2) Options
HD Audio Support*1
Card Reader (Support)*0
Fan Controller*0
RGB Controller*0
Controller max. fans*0
RGB Controller max. LED strips*0
Remote (IR or RF)*0
Cooling Fan  SupportFront2x120mm(Fan optional),2x140mm(Fan optional)
Top2x120mm(Fan optional) ,2x140mm (Fan optional)
Rear1x120mm (FN-WFBK)(including)
Water Cooling SupportFront120mm*1, 140mm*1,240mm*1,280mm*1
Top120mm*1, 240mm*1,140mm*1,280mm*1
Rear120mm*1
Dust CoverBottom  with dust filter
Slots*7
Carton & LogoOEM
DimensionsChassis(L)390*(W)210*(H)445mm
Full Case (inc Fascia)(L)438*(W)210*H)468mm
Carton(L)515*(W)280*H)505mm
VGA Card Length360mm
CPU Cooler Height170mm
Cable Management Depth37.5mm
