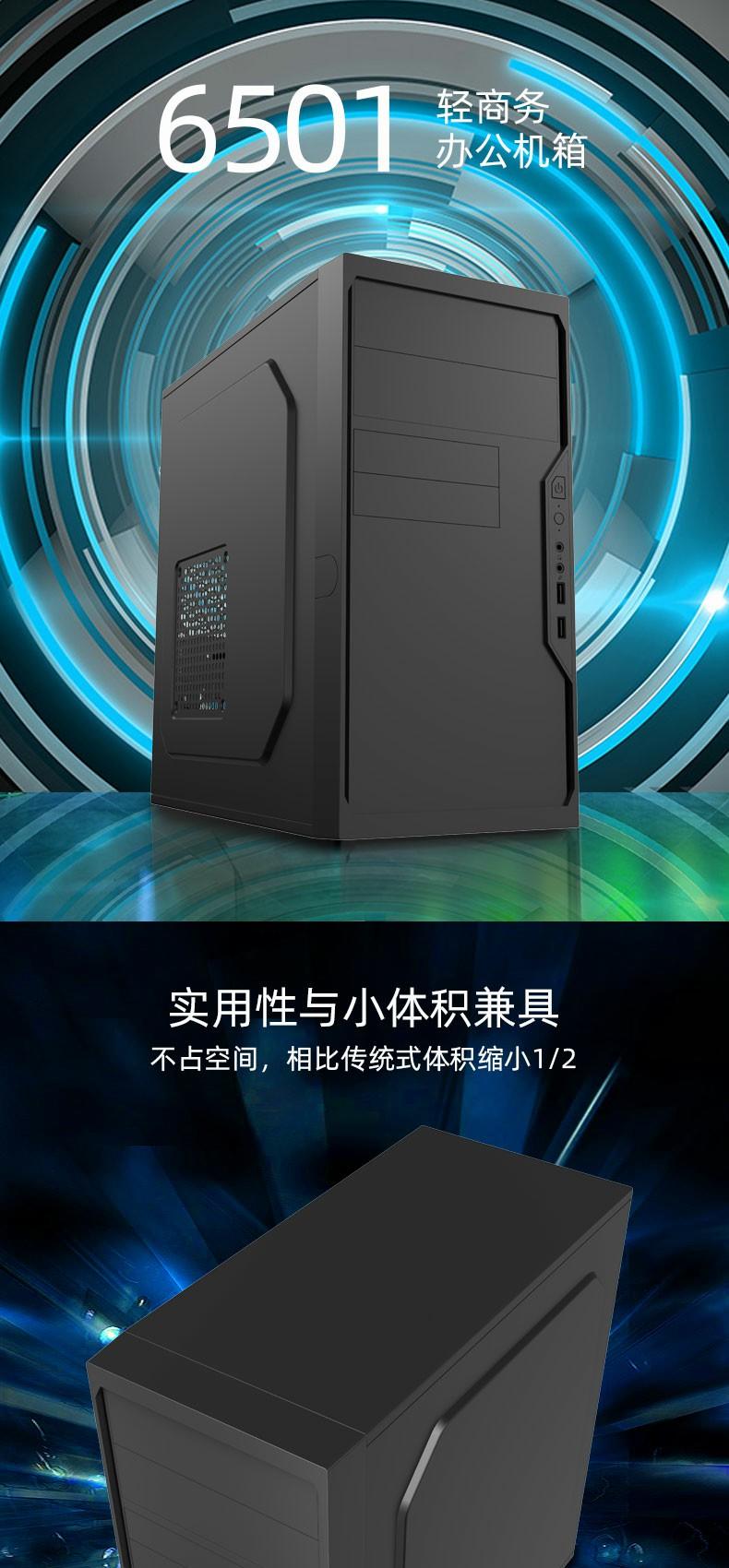

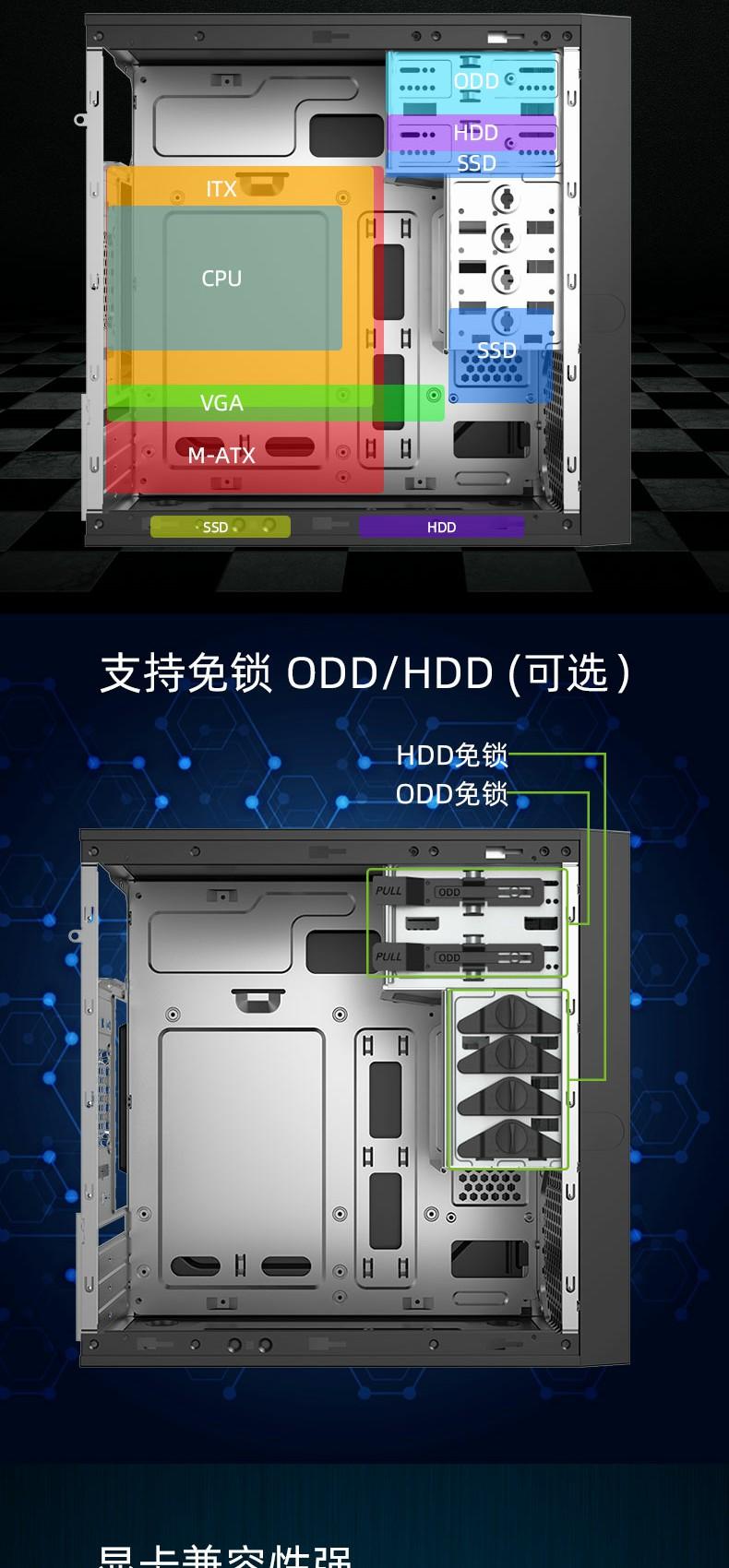

6501 黑色
mATX桌面机箱
MATX桌面机箱
开放式结构
支持2个12CM风扇前板
支持1个8CM后板
可装超长显示卡
背部走线管理
Model Micro ATX Chassis

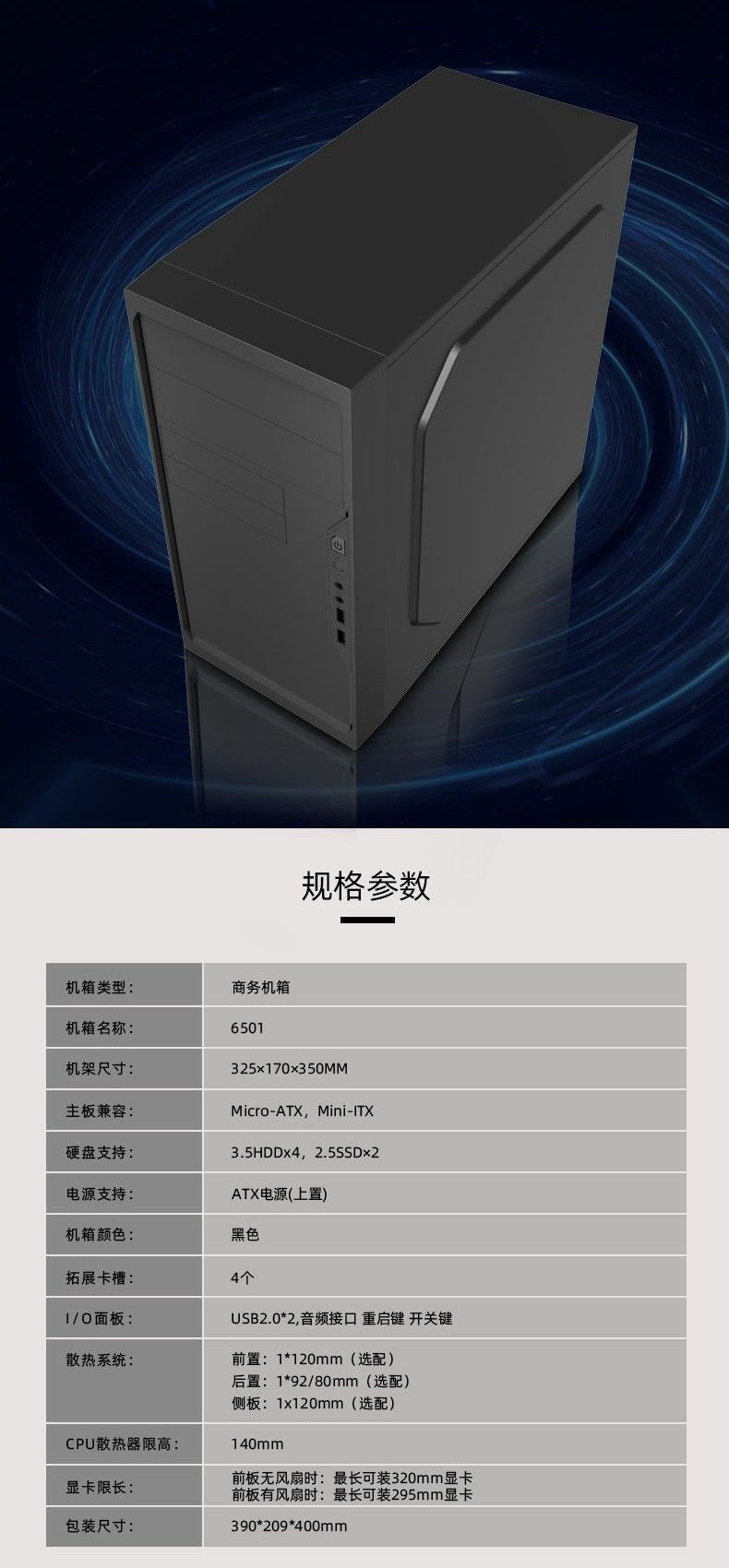

SPECIFICATION
Form Factor (Midi, Micro, Mini ITX, Full)Micro
ChassisSPCC,SGCC 0.4mm
PSU Form FactorTOP/ATX

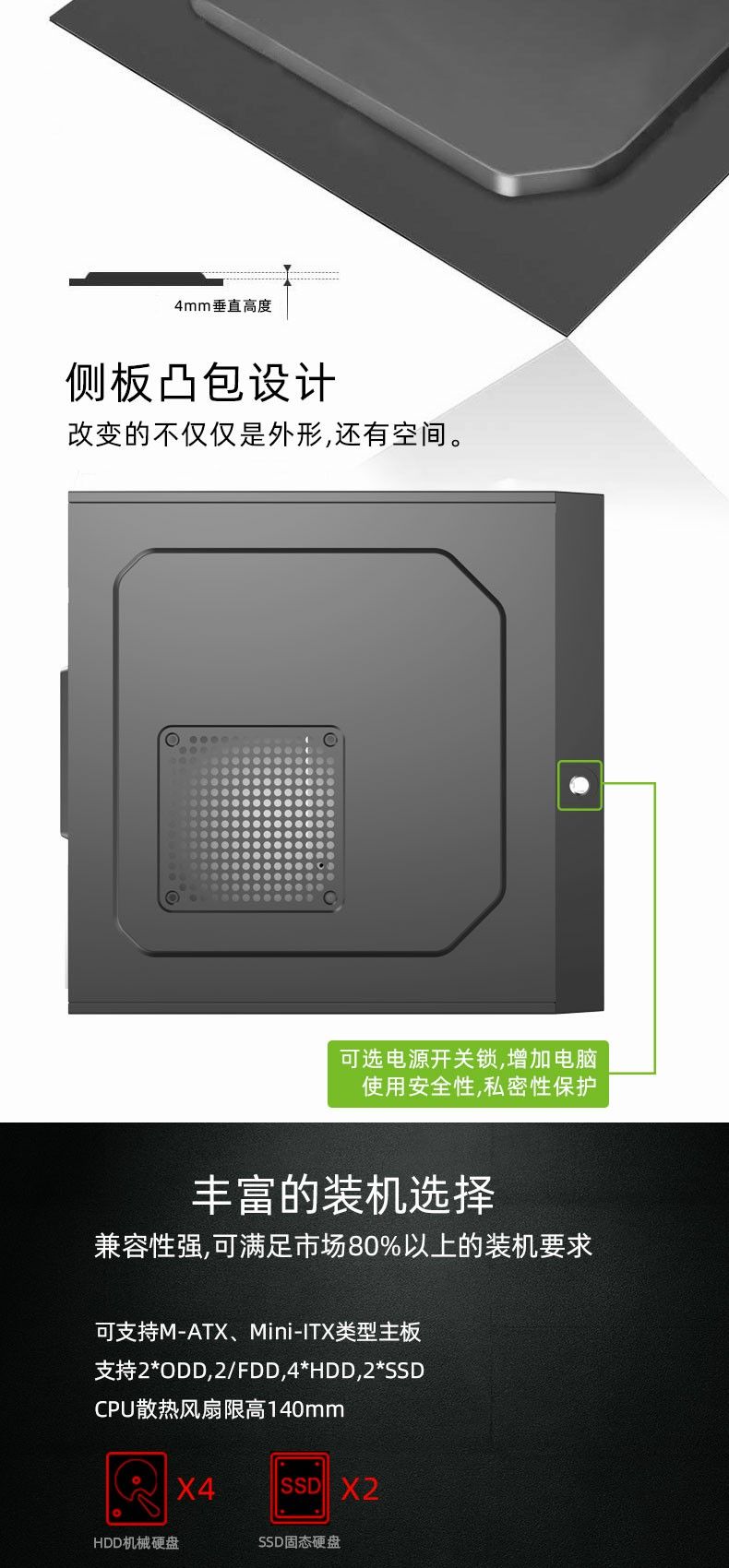

M/B Form FactorMicro-ATX、Mini-ITX
Front PanelABS
Top PanelMetal
Side PanelLeftMetal cover
RightMetal cover
External Drive Bay(s)5.25" (ODD)*1
3.5"*1

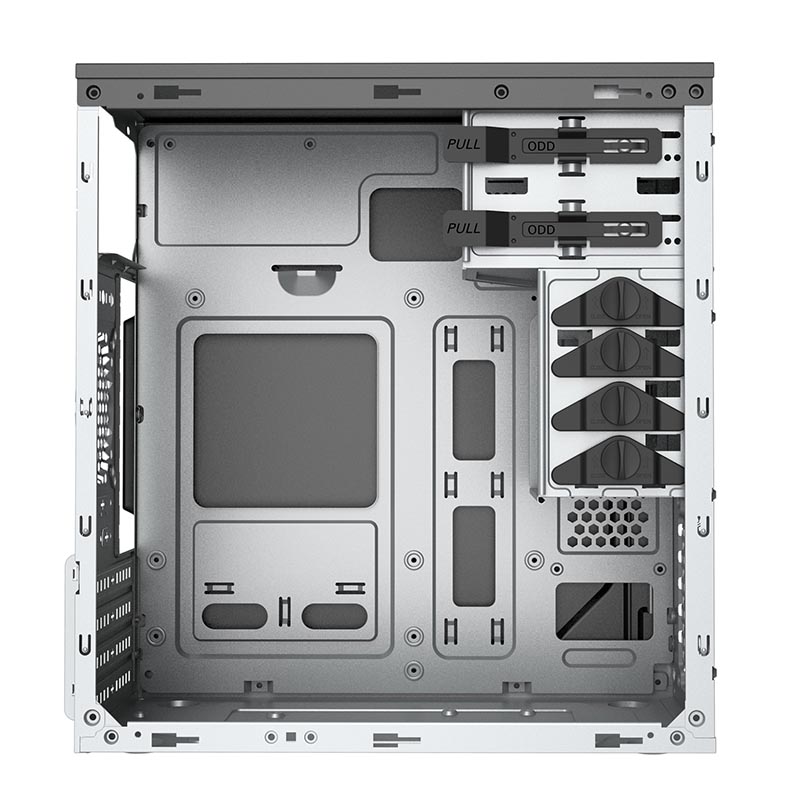

Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*3

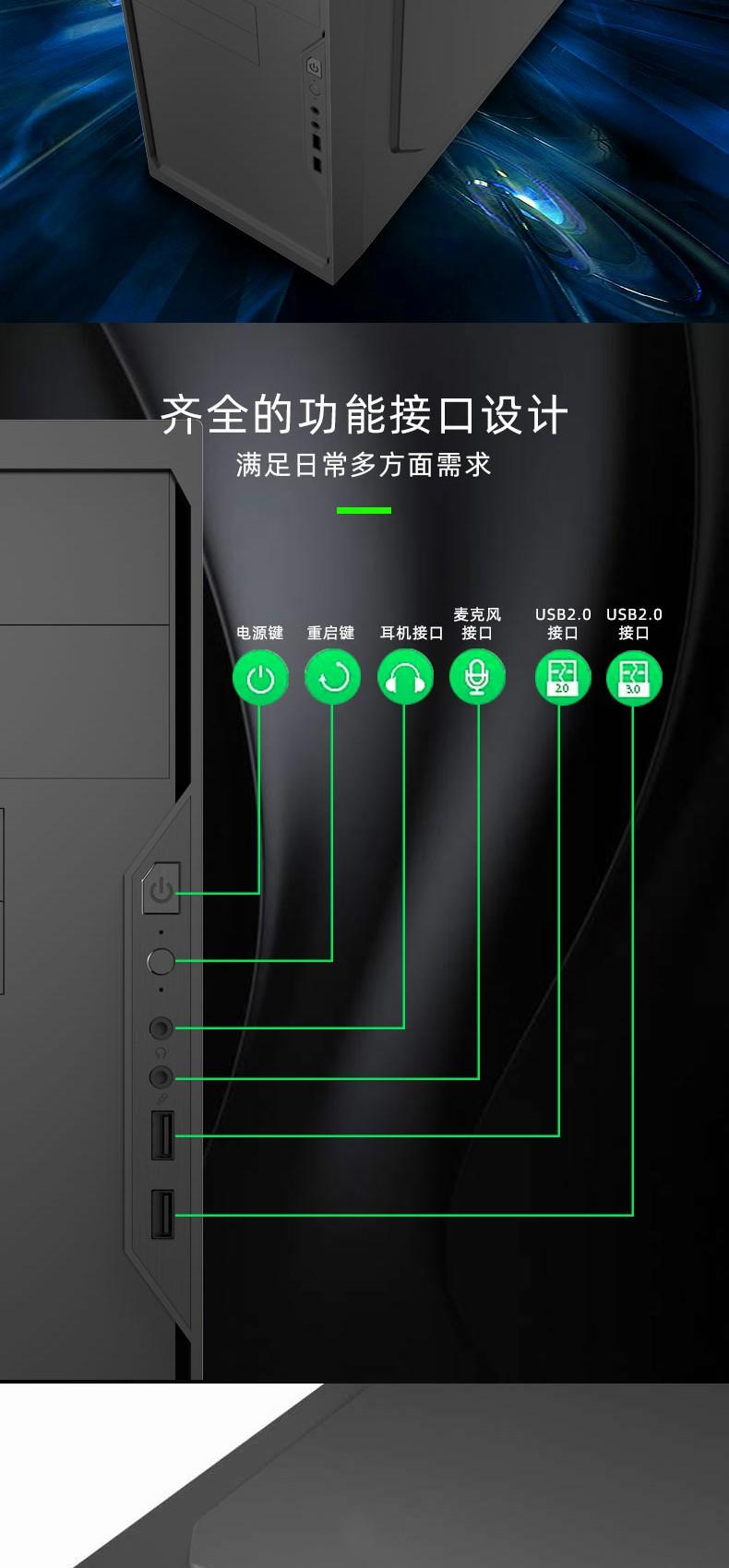

I/OButtons*2
USB2.0 Port(s)*2
USB3.0 Port(s)*0(Optional)
USB3.1 Port(s)*0(Optional)
HD Audio Support*1
Card Reader (Support)*0
P-Lock*0

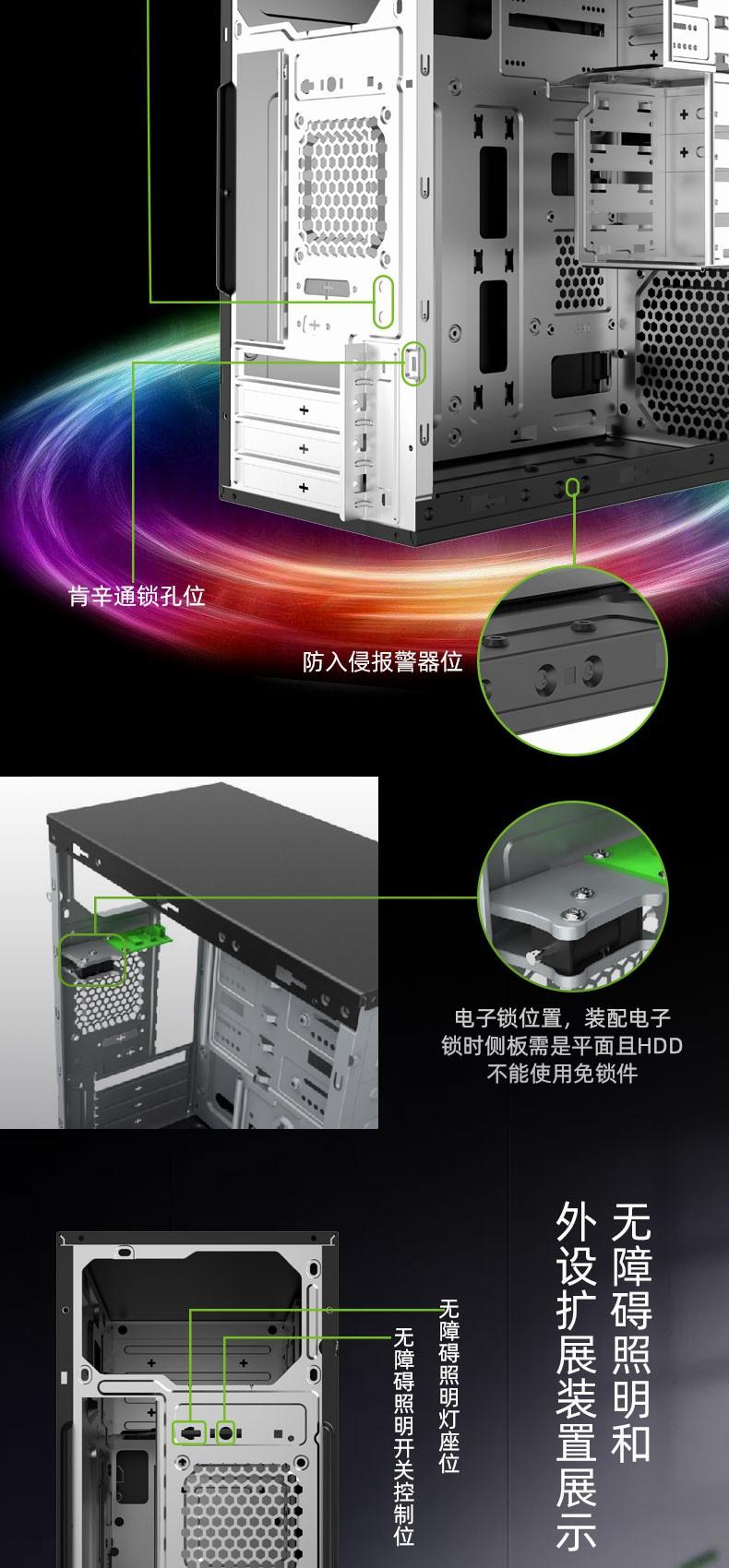

Controller max. fansKensington lock,Pad lock,Alarm Switch,electronic lock(Optional)

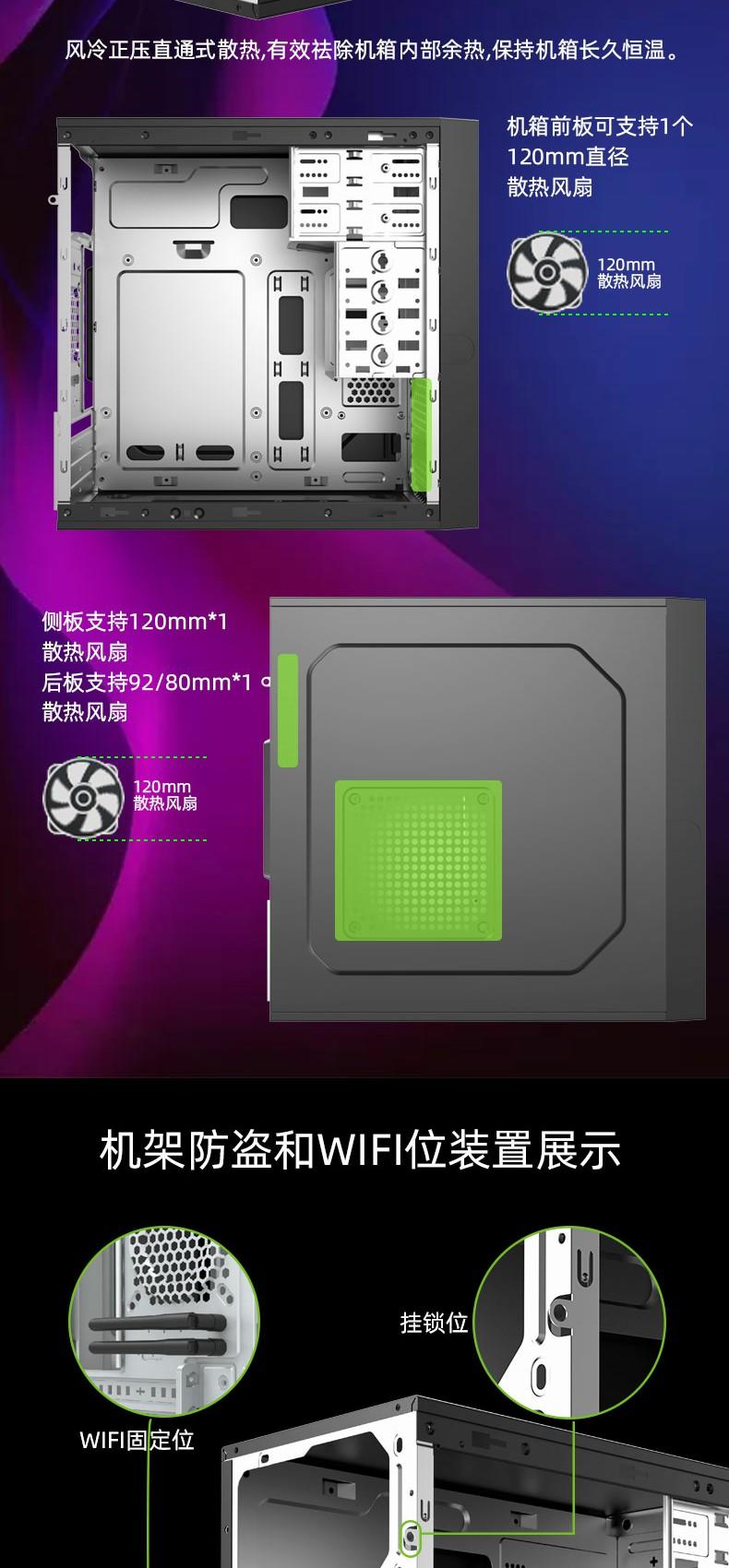

Cooling Fan  SupportFront2x120/92/80mm(Fan optional)
Top0

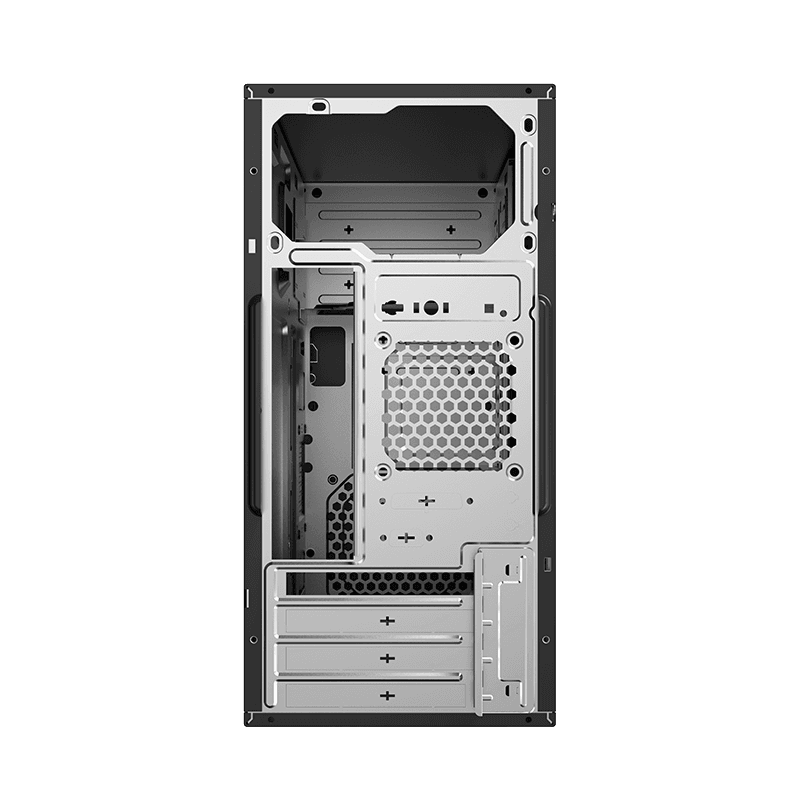

Rear1x92/80(Fan optional)
Left Side1x120mm(Fan optional)
PSU Cover0
Water Cooling Support
(Radiator Size)
Front0
Top0
Rear0
Dust Cover0
Slots*4
Carton & LogoSohoo by OEM

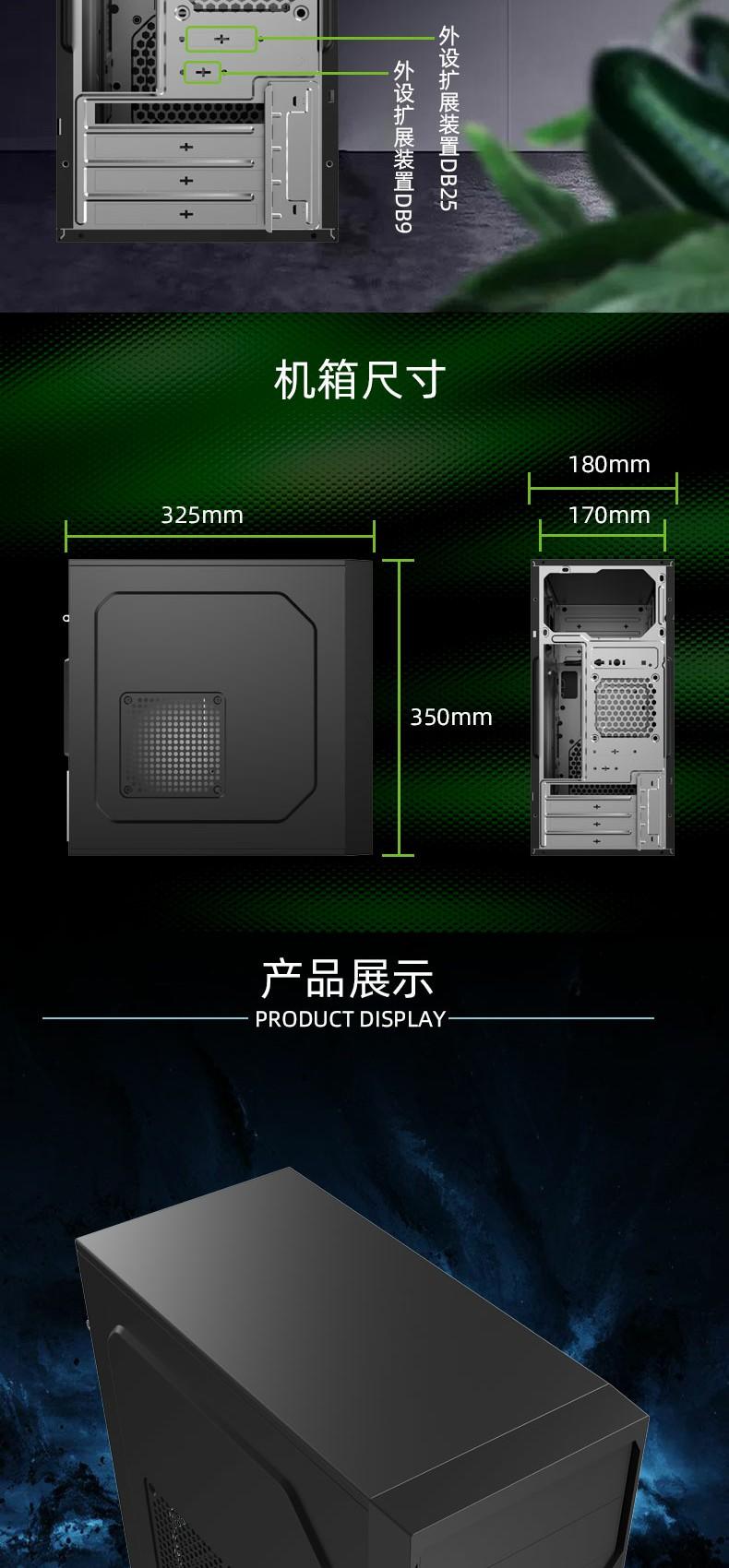

DimensionsChassis(L)325*(W)170*(H)350mm
Full Case (inc Fascia)(L)368*(W)178*(H)353mm
Carton(L)390*(W)209*(H)400mm
Net Weight (Kg)3 kgs
Gross Weight (Kg)4 kgs

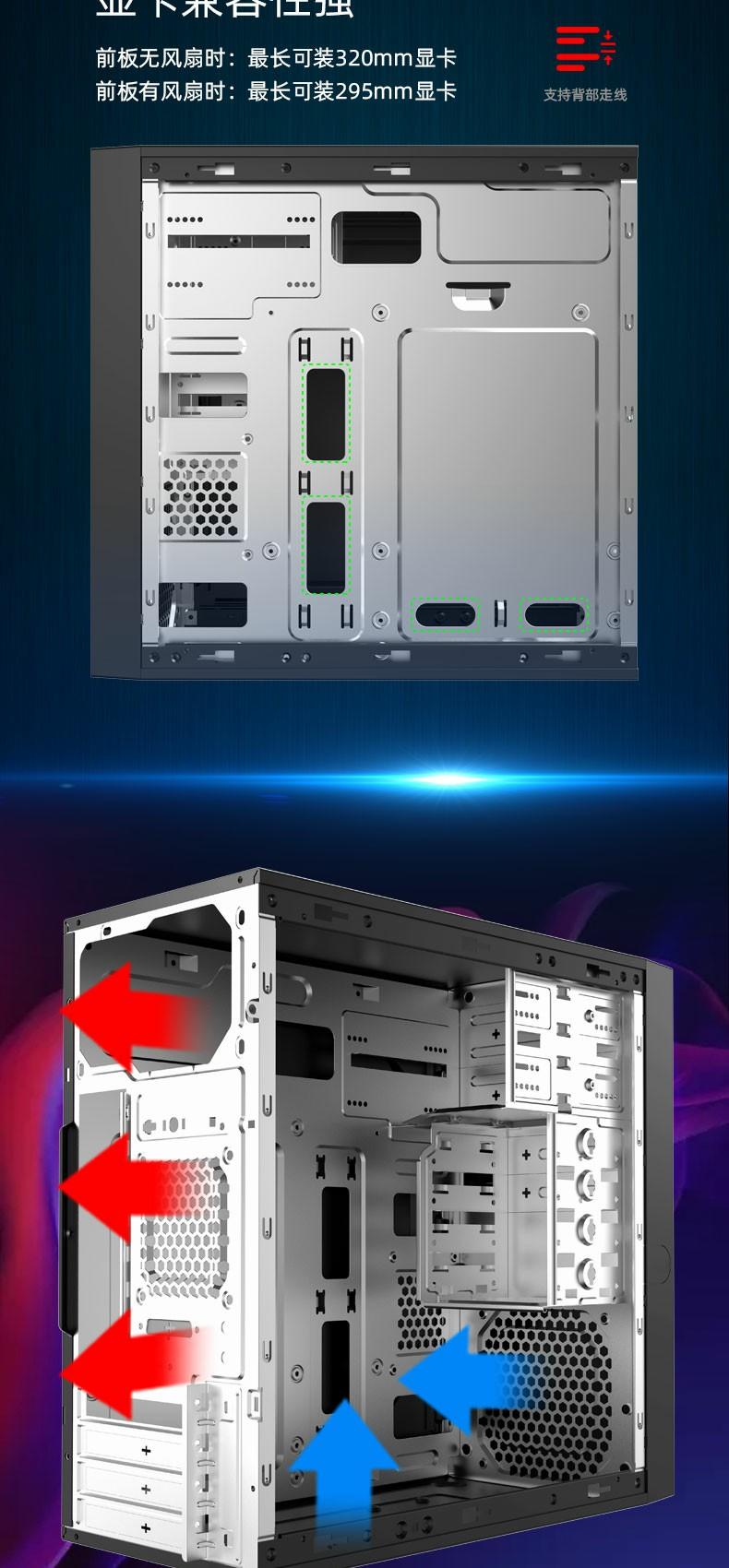

VGA Card Lengthup to 270mm
CPU Cooler Height140mm
Cable Management Depth14mm
