6305
迷你15L,台式机

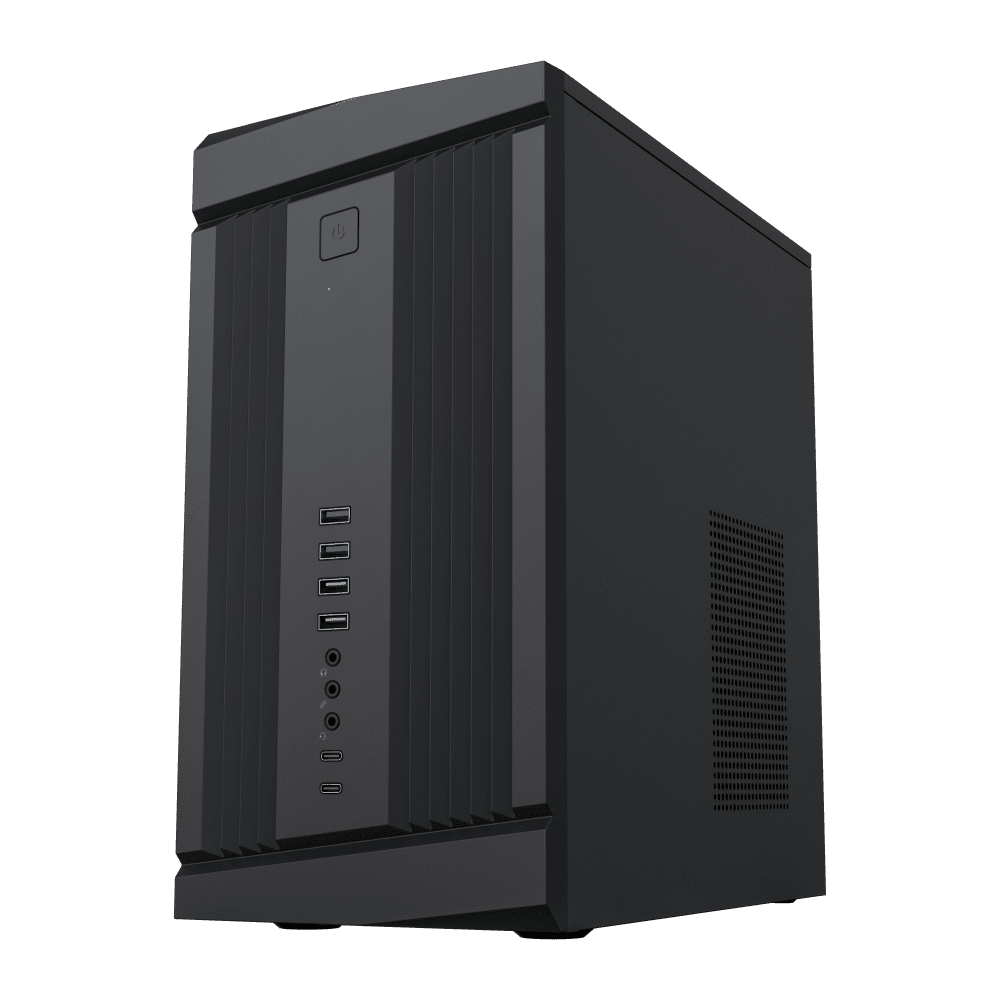

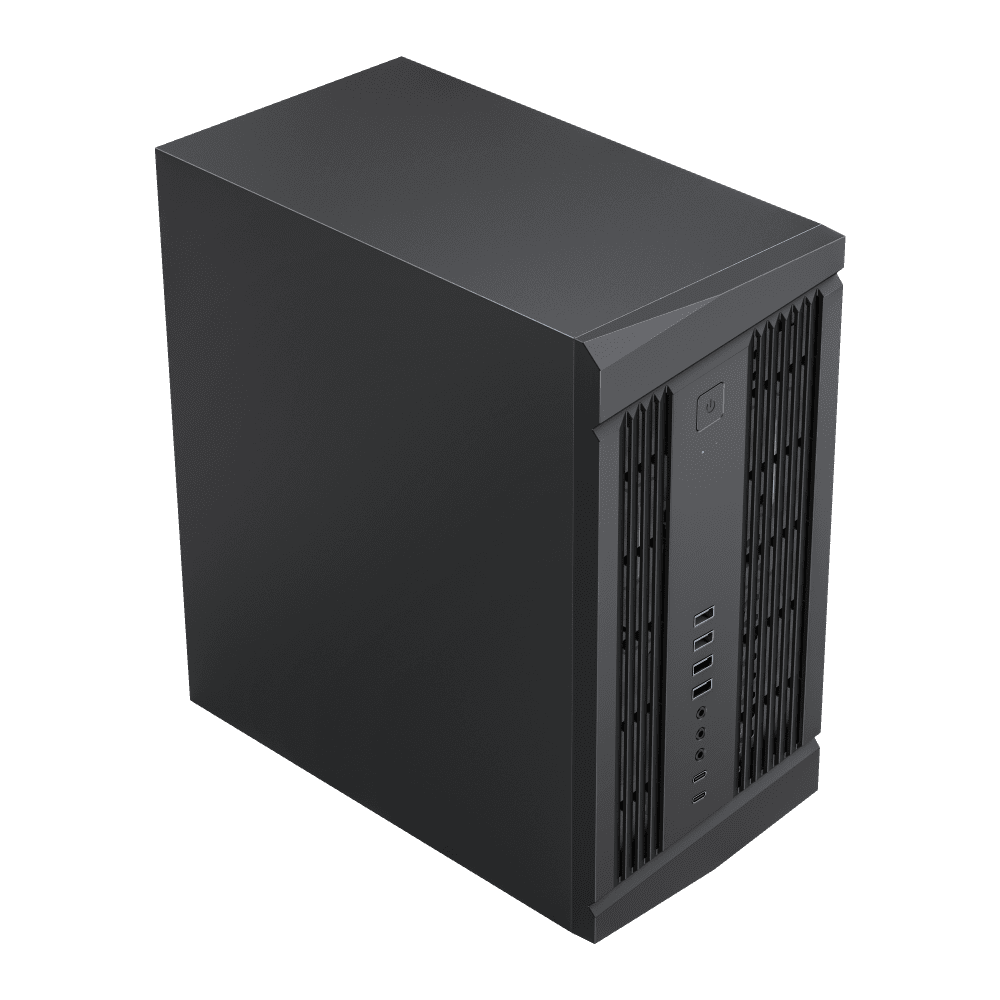

6305 迷你15L 台式机
SFX/ATX 2种电源类型选项

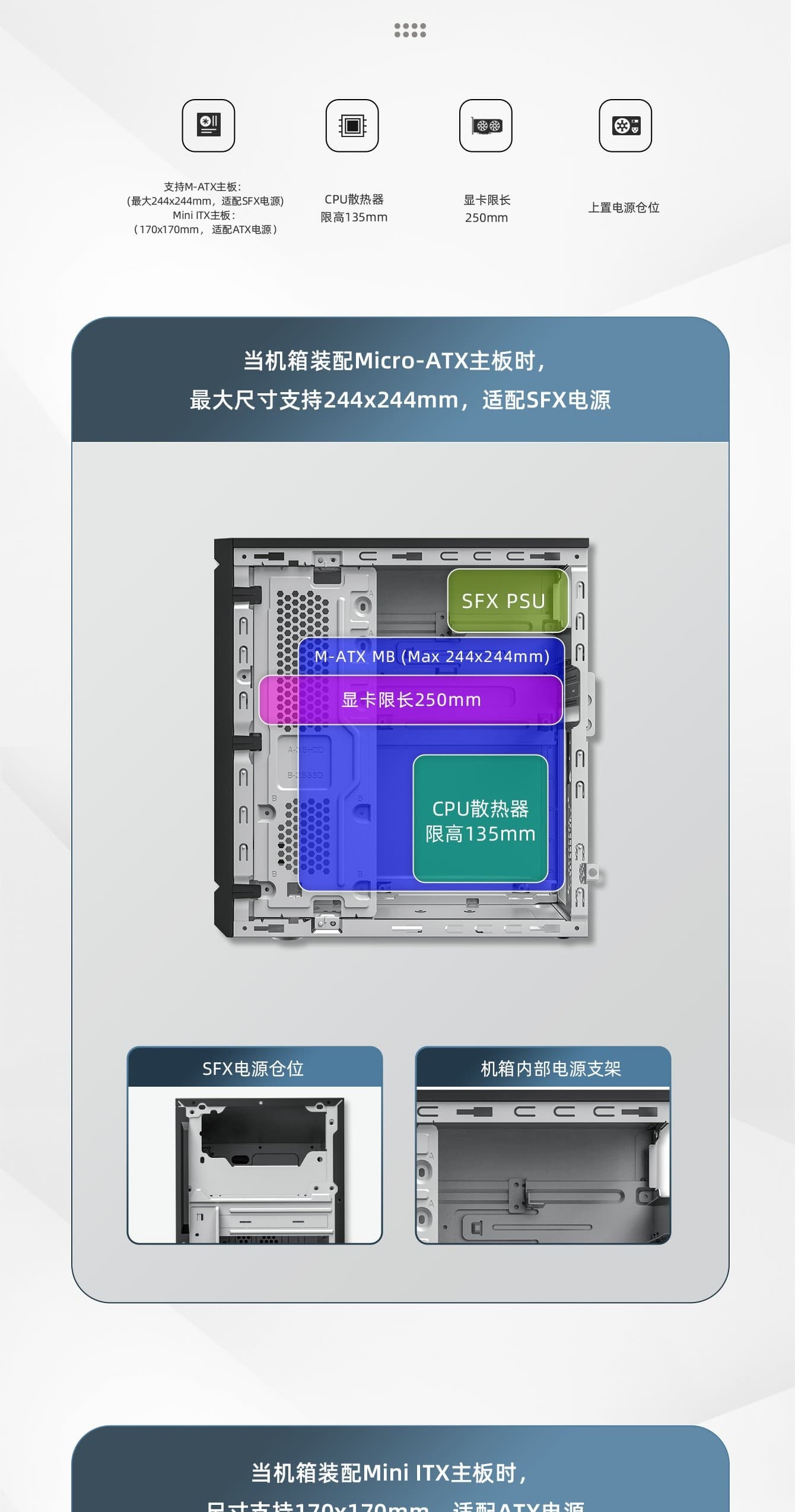

SFX电源, 支持mATX 主板 244*244mm

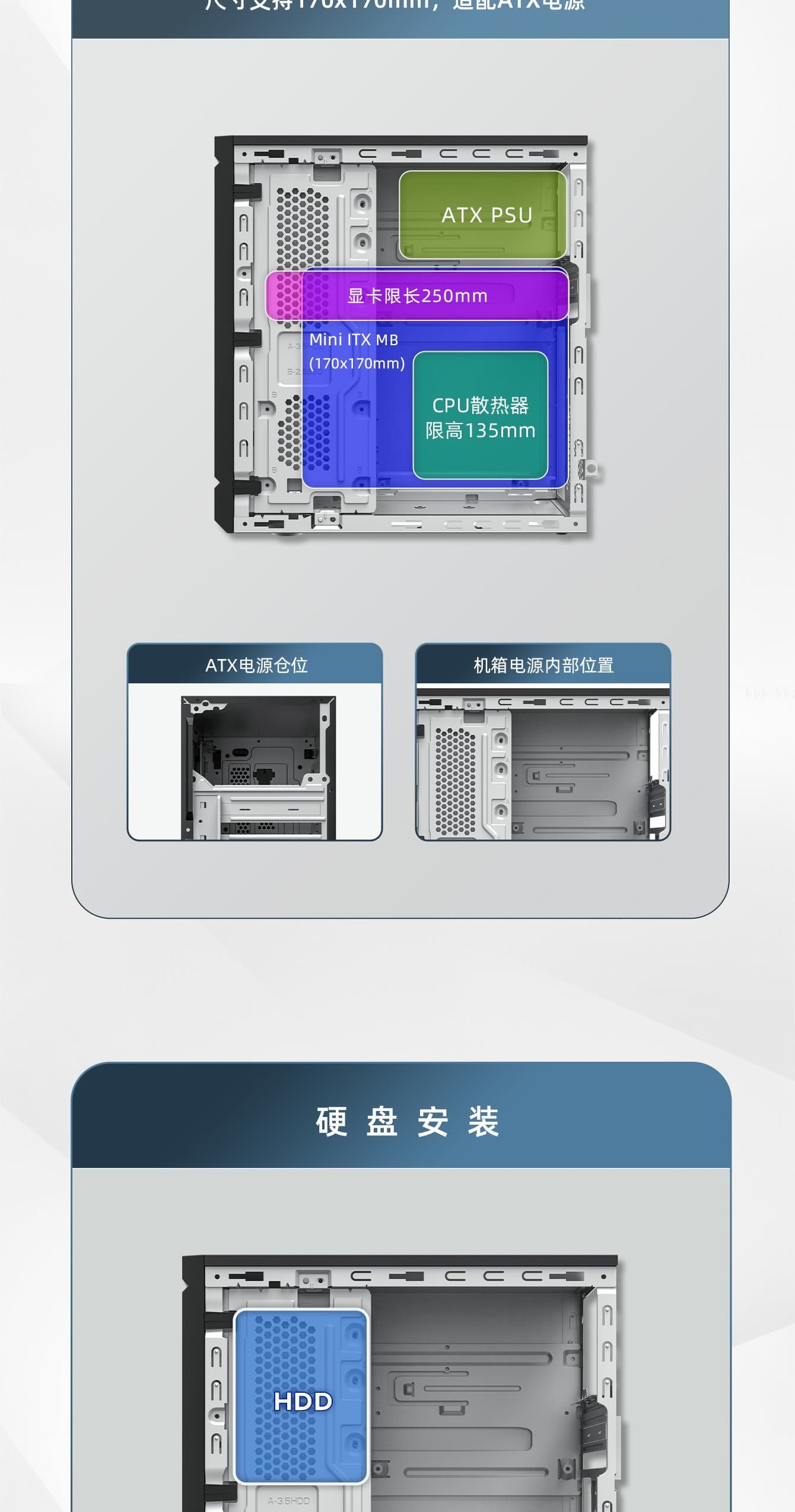

ATX电源,支持ITX 主板 170*170mm

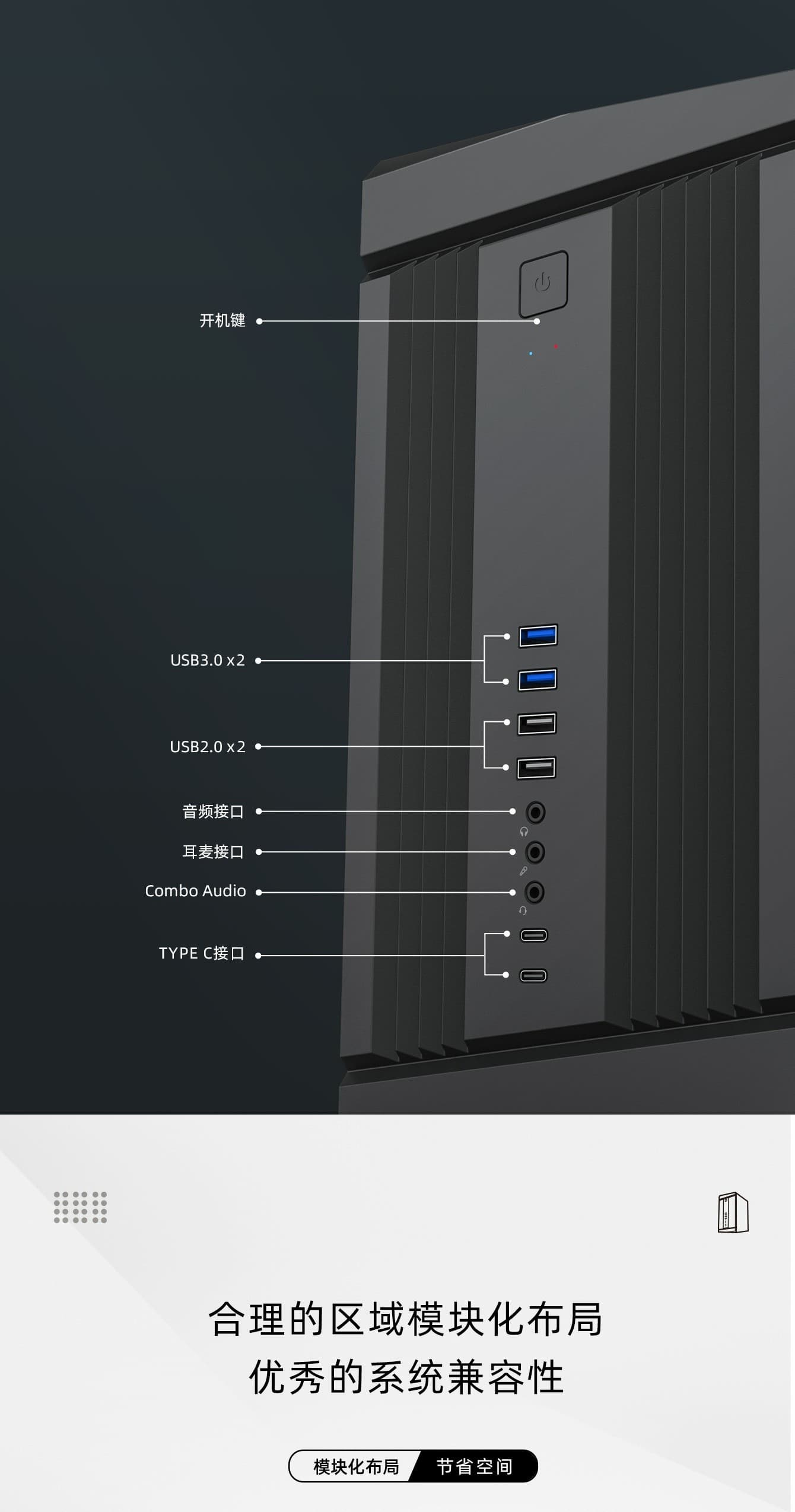

3 个音频端口(1 个 Combo +1x Mic +1xSPK)
总共 6 个 USB 端口选项(包括 Type-C 端口)
支持Kensington 锁,Padlock侧板锁扣
入侵开关、电子锁(可选)
紧凑型设计,为构建商务 PC 提供足够的空间。
Form Factor (Midi, Micro, Mini ITX, Full) Micro-ATX/Mini ITX
ChassisSGCC  0.5mm
PSU Form FactorTOP,ATX or SFX
M/B Form FactorMicro-ATX(244*244), ini ITX
Front PanelPlastic: ABS
Top PanelMetal cover
Side PanelLeftMetal cover
RightMetal cover
External Drive Bay(s)Slim  ODD*0
3.5"*0

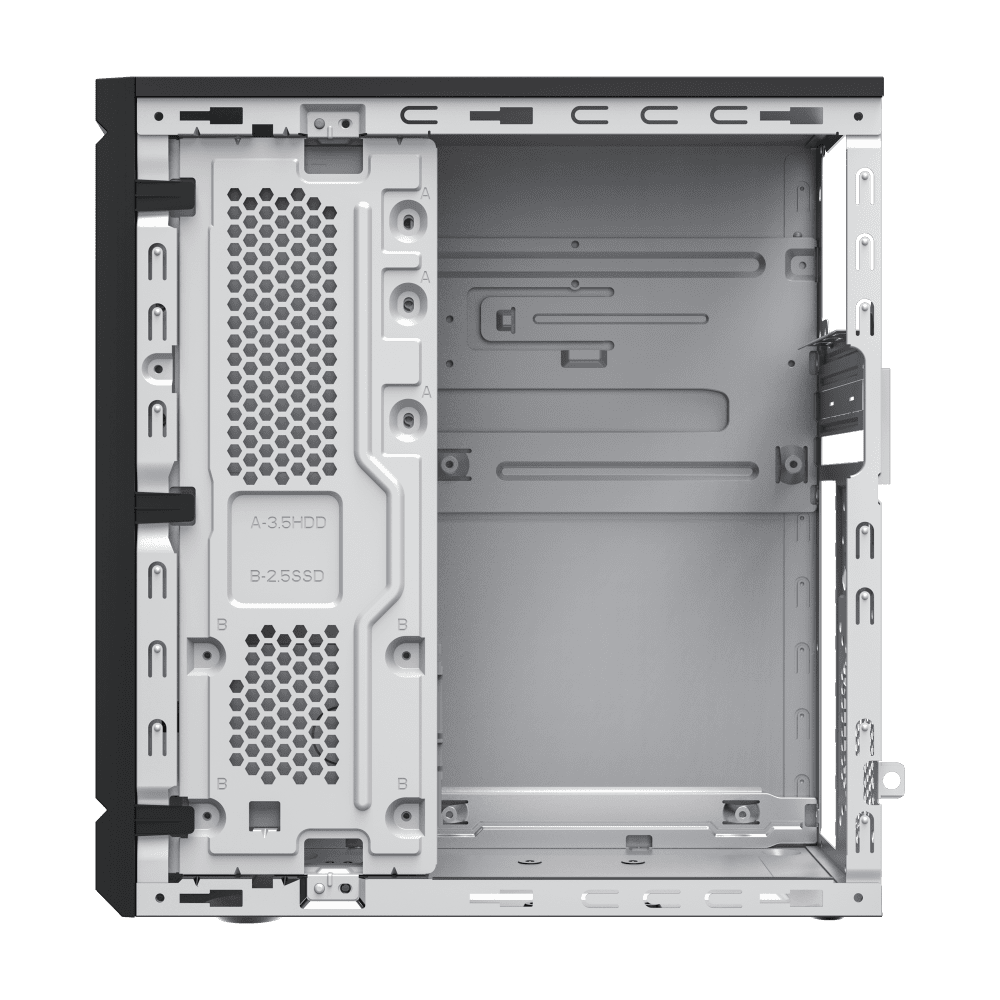

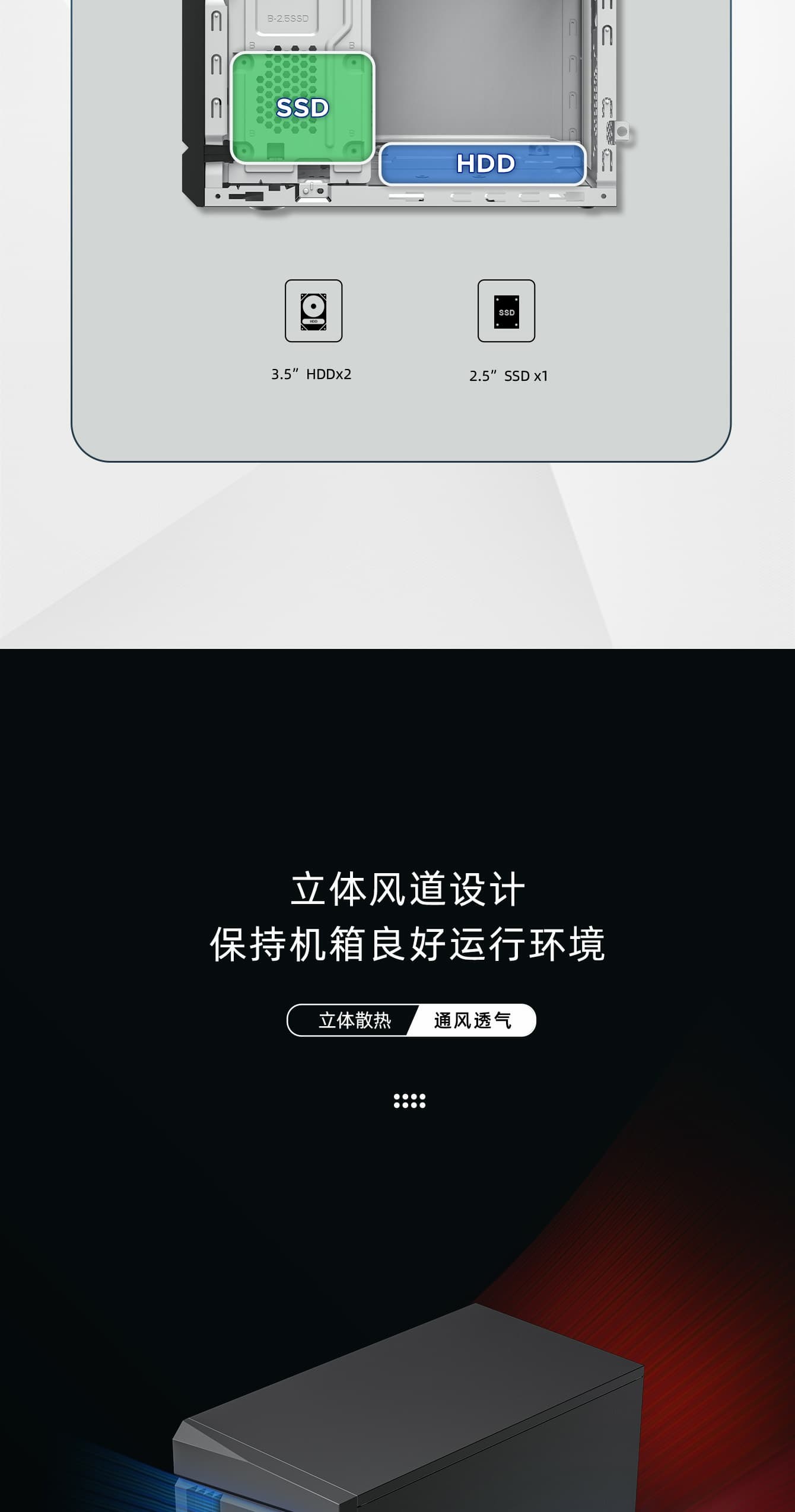

Internal Drive Bay(s)3.5" (HDD)*2
2.5" (SSD)*1
I/OButtons*1
USB2.0 Port(s)*2
USB3.0 Port(s)*2
Type C(2.0/3.0)*2
HD Audio Support*1 Mic+SPK
Combo Audio (Support)*1 Combo Audio
AccessoryInternal Speaker*1(Optional)

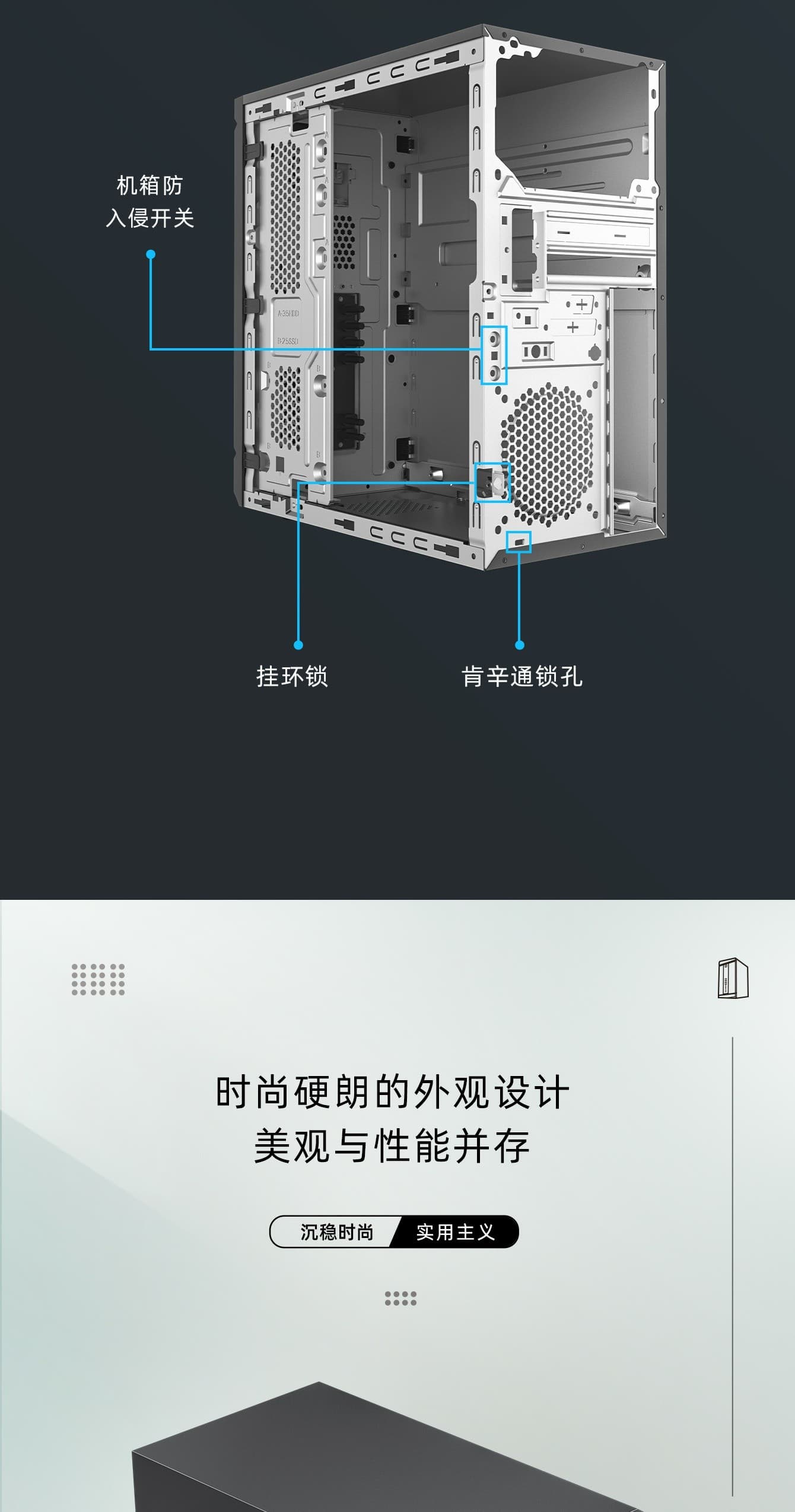

Security Intrusion switch,electronic lock(Optional)

Kensington lock,Pad lock Included
WiFi Antenna *0
Cooling Fan  SupportFront*0
Top*1
Rear80/92mm*1(Options)
Left Side0
Bottom0
Slots(Full Profile)*2
Carton & LogoOEM

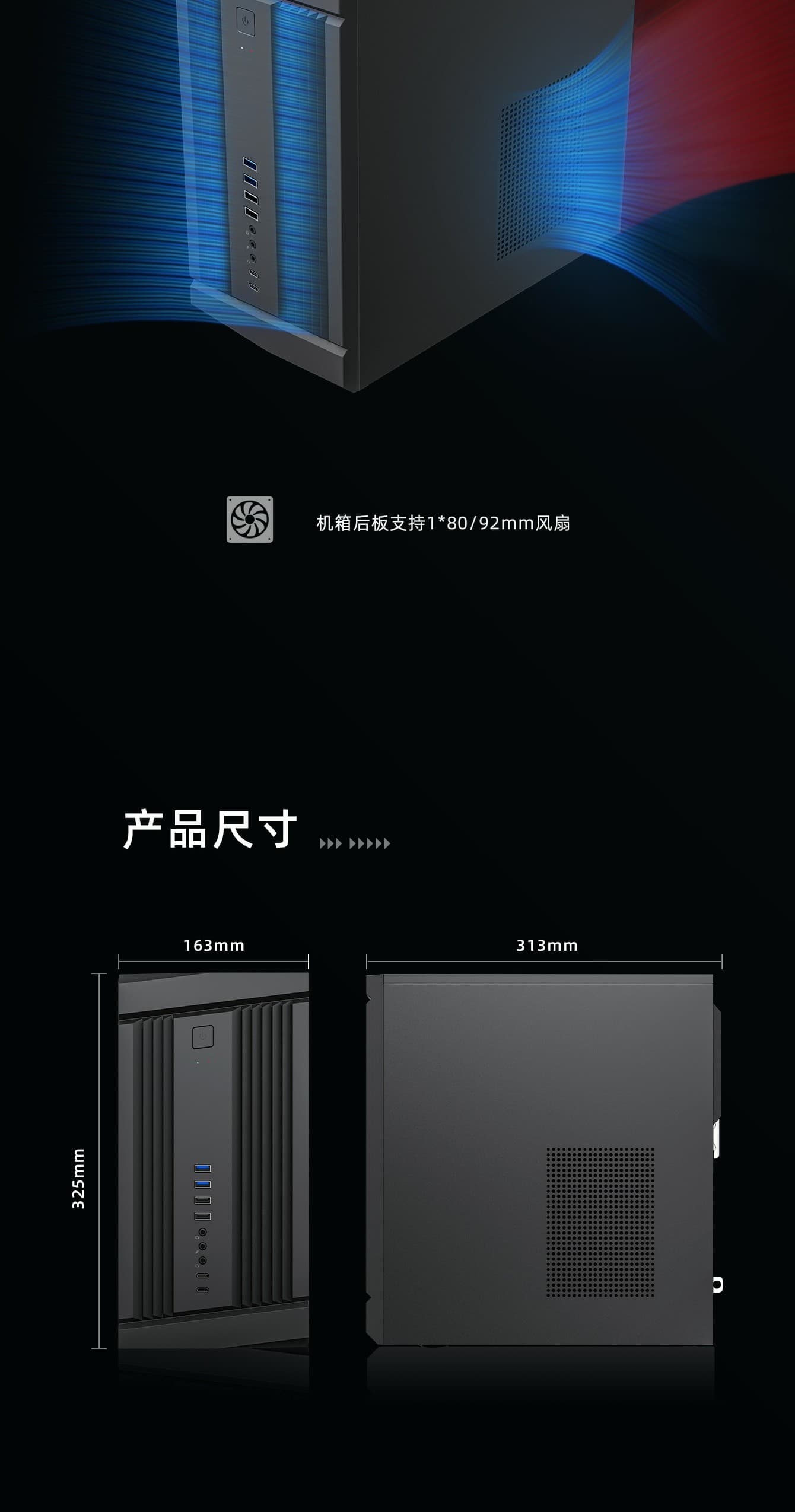

DimensionsChassis(L)285*(W)163*(H)320mm
Full Case (inc Fascia)(L)313*(W)163*(H)325mm
Carton(L)360*(W)204*(H)360mm
Net Weight (Kg)2.3kgs
Gross Weight (Kg)3.1kgs
VGA Card Size250mm
CPU Cooler Height135mm
